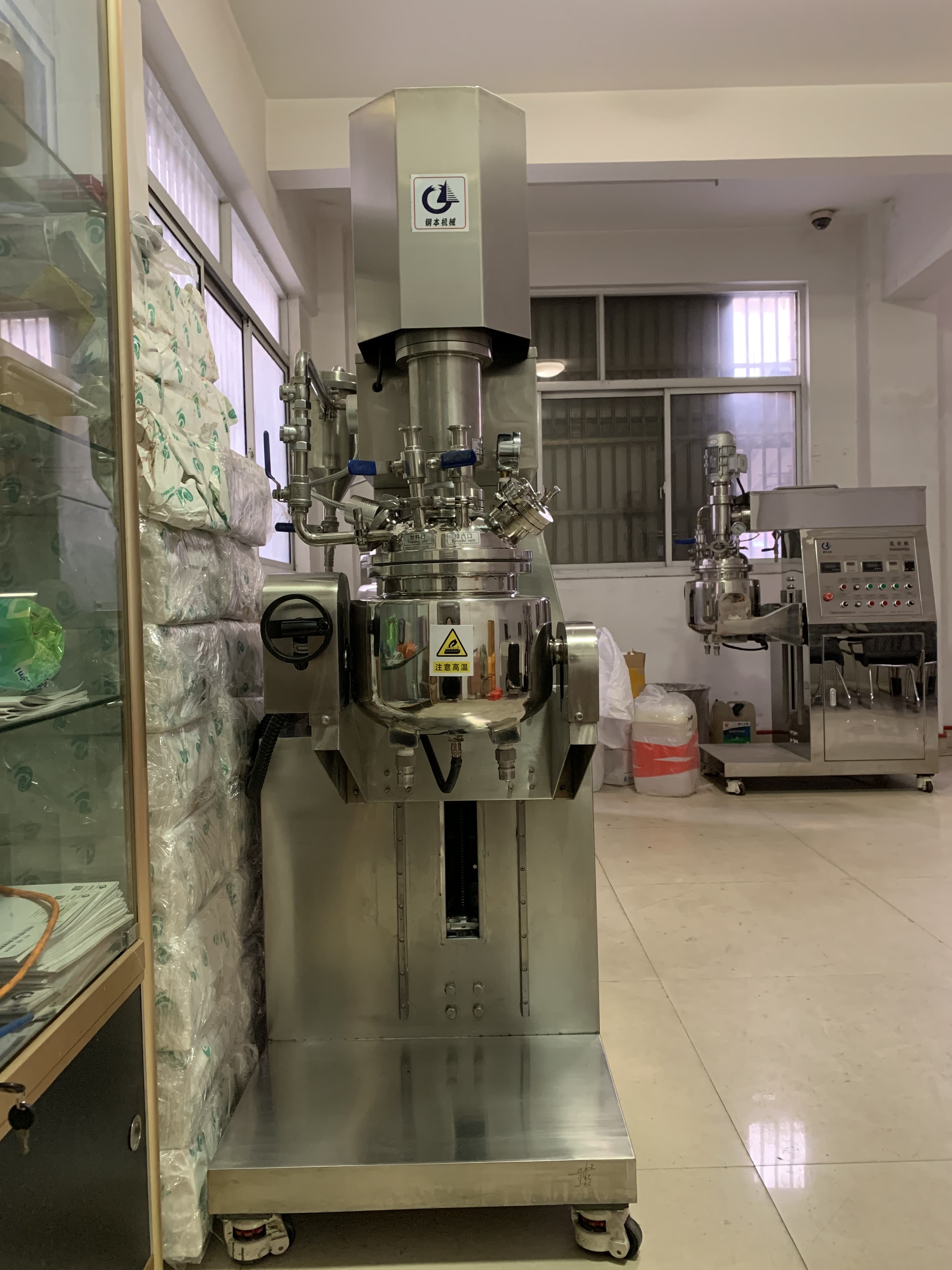

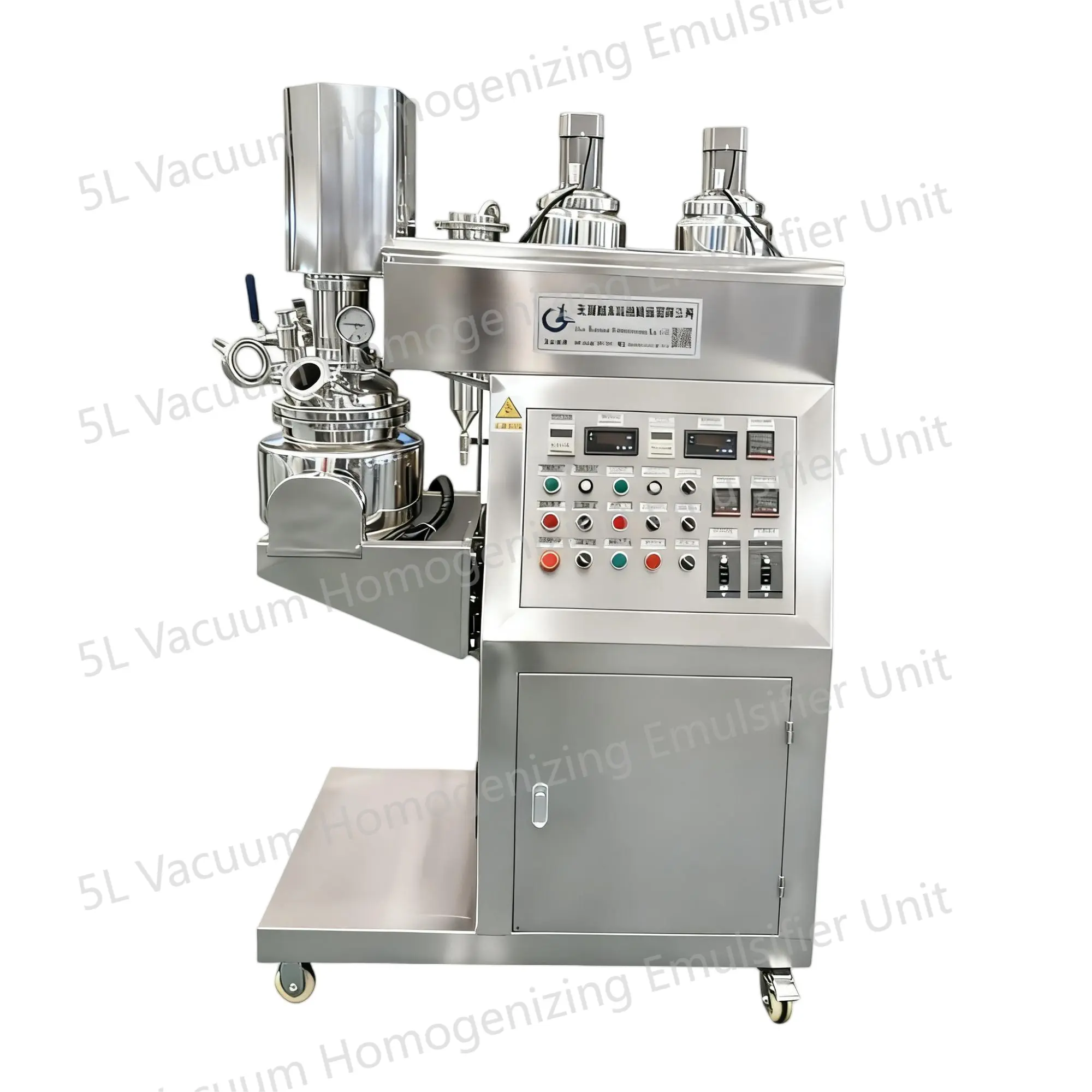

5L Vacuum Homogenizing Emulsifier Unit

The 5L Emulsifying Unit is a compact, high-efficiency equipment for small-batch emulsification, mixing and homogenization. Adopting a high-speed rotor-stator system, it ensures uniform, stable emulsions. Made of food-grade 316L stainless steel, it meets FDA/GMP standards. Equipped with adjustable speed and temperature monitoring, it’s ideal for labs, R&D and small-scale production in cosmetics, pharmaceuticals and food industries.

Always on time
Acceptable price
Excellent quality

Follow Us:

Contact Us Inquiry Now

Description
Feature&Application
Factory Strength

The 5L Emulsifying Unit is a specialized, space-efficient system tailored for small-batch production, laboratory R&D, and pilot-scale testing in industries including cosmetics, pharmaceuticals, food processing, and fine chemicals. Engineered to deliver consistent, high-quality emulsions, suspensions, and dispersions, it bridges the gap between lab-scale experiments and full-scale manufacturing, making it an indispensable tool for businesses aiming to optimize formulations and scale up efficiently.
At its heart lies a high-shear homogenizer with a precision stator-rotor assembly, capable of operating at 0–34,000 RPM to generate intense mechanical shear. This breaks down immiscible phases, droplets, and particles into ultra-homogeneous emulsions, suspensions, or dispersions—ensuring consistent texture and long-term stability, whether processing thin serums, thick creams, or viscous pastes. The 5L tank is crafted from 316L stainless steel, renowned for corrosion resistance and easy sanitization, while full compliance with GMP, FDA, and CE standards makes it suitable for sensitive applications like pharmaceutical ointments and organic skincare.
Complementary functional modules elevate its utility: a jacketed heating/cooling system maintains temperatures between 5°C–100°C for heat-sensitive materials; vacuum degassing eliminates air bubbles to boost product clarity; and a quick-release bottom valve with a filter enables contamination-free discharge. The intuitive touchscreen HMI lets operators store up to 100 recipes, ensuring repeatable results, while safety features—overload protection, emergency stop, and lid interlocks—prioritize operational security. Compact in size yet robust in performance, this unit balances versatility and reliability, empowering labs and small manufacturers to achieve professional-grade results without compromising on efficiency.

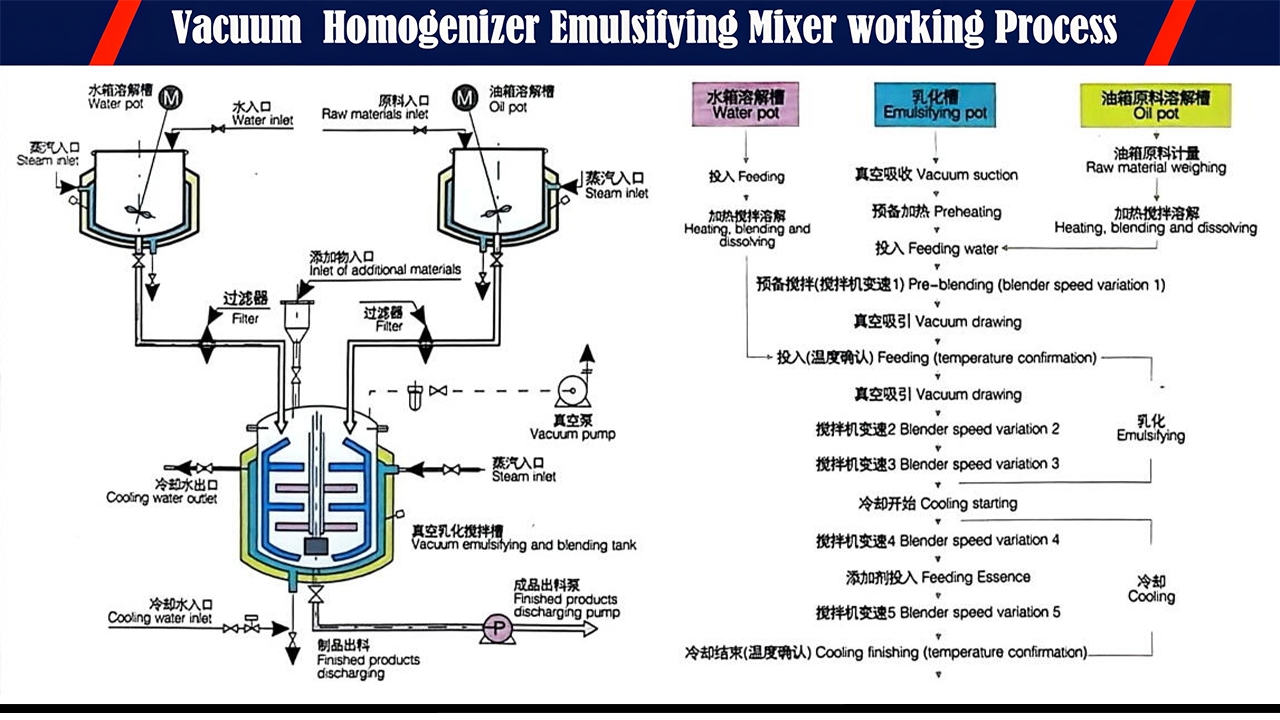

Gangben Mixer Factory produces a variety of vacuum homogenizing emulsifiers. Its homogenizing system is divided into upper homogenization, lower homogenization, and internal-external circulation homogenization; the mixing system adopts positive and negative bidirectional wall-mounted mixing paddles; the lifting system is divided into electric lifting and hydraulic lifting. The factory can customize high-quality emulsifying machine products of various specifications according to customer requirements. The triple mixing adopts imported inverter for speed regulation, which can meet the production needs of different processes.
It adopts imported mechanical seals with excellent performance and German homogenizing structure technology, with the maximum emulsification speed reaching 3400 RPM and the minimum shear fineness reaching 0.2~5μm.
Vacuum defoaming enables materials to meet aseptic requirements, and vacuum suction is adopted—especially for powder materials, as vacuum inhalation can avoid dust flying.
The main pot cover can be equipped with an optional lifting device, which enhances the cleaning effect, and the pot body can be tilted for discharging.
The pot body is welded with three layers of imported stainless steel plates, and the tank body and pipelines are polished or matte-finished, fully complying with GMP requirements.
The tank can heat and cool materials, with the main heating methods being steam heating and electric heating.
To ensure more stable control of the entire machine, the electrical components are imported and fully meet international technical standards.

Application Area

Vacuum emulsifying mixers are used in many application areas, as follows:
Daily chemical products: Used in the production of emulsions, creams, shampoos, shower gels, etc.
Biomedicine: Used in the production of medical emulsions, ointments, oral liquids, etc.
Food industry: Used in the production of emulsified foods, such as yogurt, ice cream, cheese, etc.
Paint and ink: Used in the production of emulsified paints and inks.
Nanomaterials: Used in the preparation of nanomaterials.
Petrochemical industry: Used in the production of emulsified petroleum products.
Printing and dyeing auxiliaries: Used in the production of emulsified paper treatment agents.
Pesticides and fertilizers: Used in the production of emulsified pesticides and fertilizers.
Plastic and rubber: Used in the production of emulsified plastic and rubber materials.
Electric power and electronics industry: Used in the production of emulsified insulation materials and electronic components.
Other fine chemical engineering fields: Such as ceramics, glass, metal processing, etc.

In short, vacuum emulsifying machines have a wide range of applications and are mainly used to produce emulsified products, helping to improve product stability and performance in various industries.
Gangben Mixer Manufacturer specializes in the research, development, production, and sales of mixing machines and filling machines. Its main products include vacuum emulsifying mixers, high-shear emulsifying mixers, vacuum homogenizing emulsifiers, filling and sealing machines, and liquid filling production lines. Equipped with modern production workshops and environments, we adopt advanced equipment manufacturing technologies and strict process quality management and control measures to ensure that all products are free from defects before leaving the factory.

Gangben Mixer Factory has obtained multiple patents for the research and development of emulsifying machines and planetary mixers, as well as ISO quality management system certification and international CE certification. Our products meet quality standards with a reliable quality guarantee. We are committed to manufacturing high-quality mixing machinery to enhance your production efficiency and reduce costs for your company.
