20L Planetary Disperser Mixer

The 20L Planetary Disperser Mixer is a high-performance mid-sized mixing equipment integrating planetary stirring and high-speed dispersion. Ideal for pilot production, small-batch manufacturing and R&D, it offers precise temp control (RT-100℃), adjustable speed (0-1700rpm), and 304/316 stainless steel construction. Efficiently handles coatings, adhesives and pastes, delivering consistent, homogeneous mixing results.

Always on time
Acceptable price
Excellent quality

Follow Us:

Contact Us Inquiry Now

Description
Feature&Application
Factory Strength

The 20L Planetary Disperser Mixer represents a professional mid-capacity mixing solution engineered to bridge laboratory research and full-scale production. Combining planetary rotation and high-speed dispersion technologies, this versatile equipment ensures thorough blending and particle refinement across a wide range of materials, from low-viscosity liquids to high-consistency pastes.
With its 20L working capacity, the mixer is perfectly suited for pilot-scale trials, small-batch manufacturing, and advanced R&D applications in industries including coatings, adhesives, pharmaceuticals, and cosmetics. It maintains precise control over critical mixing parameters: temperature regulation from room temperature to100℃ accommodates heat-sensitive formulations and thermally activated processes, while the 0-1700rpm adjustable speed range provides flexibility for different material properties and mixing requirements.

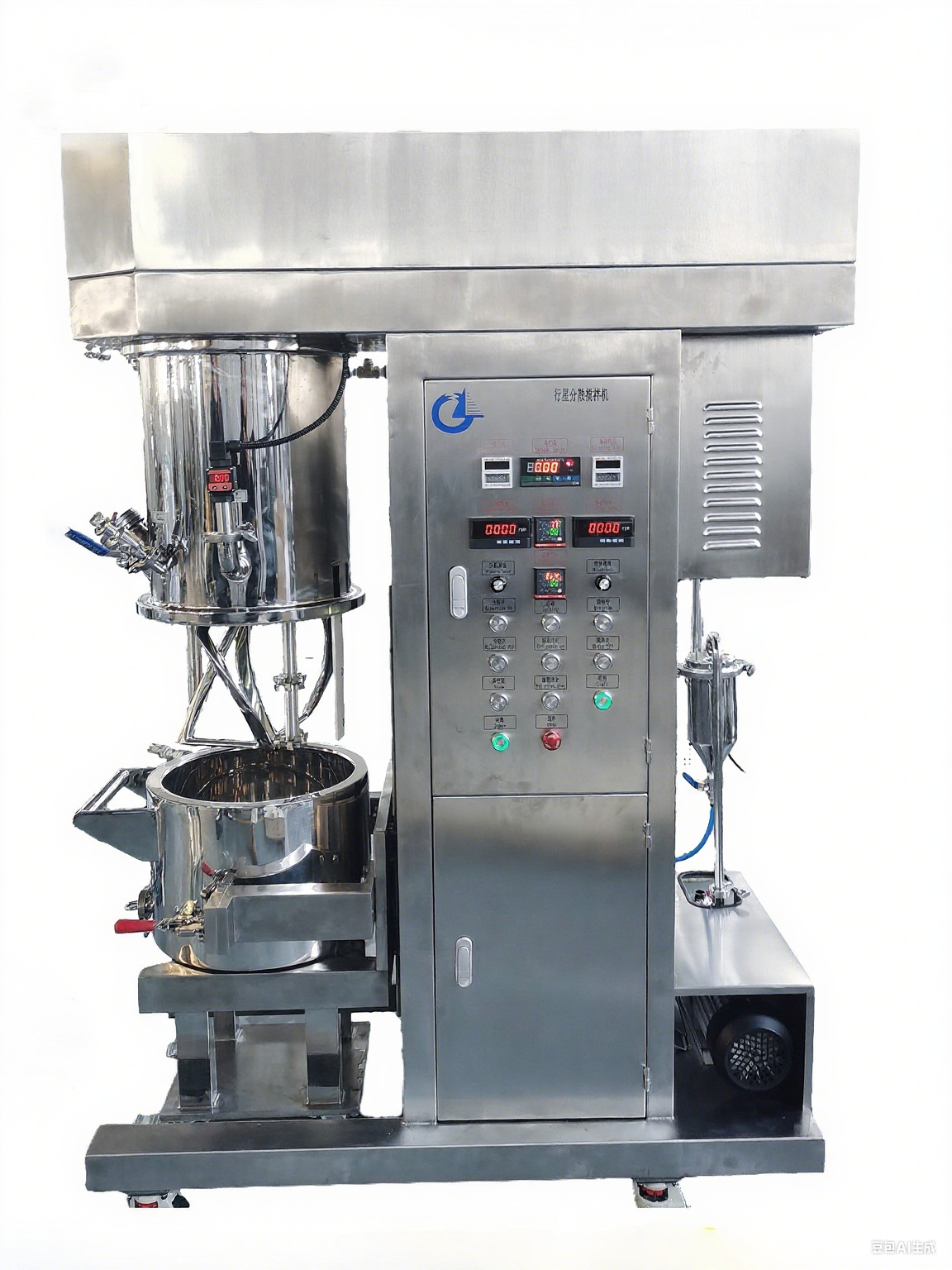

Constructed with high-grade 304/316 stainless steel, the mixing chamber and agitators offer exceptional corrosion resistance against chemicals and solvents, ensuring material purity and long-term durability. The unit features an intuitive digital control panel that provides real-time monitoring of temperature, speed, and mixing duration, allowing for precise process replication and quality control.

Designed with operational efficiency in mind, the mixer includes quick-release components for easy cleaning and maintenance, minimizing downtime between batches. Safety features such as overload protection and emergency stop functions ensure secure operation in industrial environments.
Whether processing coatings, adhesives, sealants, or cosmetic formulations, the 20L Planetary Disperser Mixer delivers consistent, homogeneous results that accelerate product development cycles and ensure production stability. This reliable equipment represents a cost-effective investment for businesses seeking to optimize their mixing processes while maintaining the highest standards of quality and efficiency.
The technical features and application industries of the double planetary mixer are as follows:

Technical Features:

Broad application range: The double planetary mixer is suitable for diverse processes, including the dissolution, mixing, blending, and reaction of materials ranging from powders to high-viscosity and high-density substances.
High mixing efficiency: By employing the double planetary mixing principle, the mixer achieves efficient, uniform mixing, thereby boosting production efficiency and enhancing product quality.
User-friendly and safe operation: The mixer supports automatic control, featuring simple, stable, fast, and convenient operation to ensure safe equipment operation.
No mixing dead zones, no material climbing, and superior sealing: The mixer’s blades perform planetary motion (revolving around the central axis) while rotating on their own axes, ensuring thorough mixing without dead zones. Its design also prevents material climbing and ensures excellent sealing performance.
Precise temperature measurement and rapid heating/cooling: Equipped with both low-speed mixing components and high-speed dispersing components:The low-speed mixing components utilize planetary gear transmission; their blades rotate on their own axes while performing planetary motion, achieving optimal mixing results in a short time.The high-speed dispersing components rotate at high speed on their own axes while revolving with the planetary carrier, subjecting materials to intense shearing and dispersive mixing—delivering mixing effects several times more efficient than ordinary mixers.

Application Industries:

Aerospace polymer materials: Applied in the preparation of high-performance composite materials, coatings, and related products.
Battery paste: Utilized for the preparation and mixing of battery electrode slurries.
Food industry: Employed in the mixing and seasoning of food ingredients.
Chemical industry: Used for the dissolution, mixing, and reaction of chemical raw materials.Pharmaceutical industry: Applied to the mixing and preparation of pharmaceutical raw materials.
Pharmaceutical industry: Applied to the mixing and preparation of pharmaceutical raw materials.

In summary, the double planetary mixer is an efficient, versatile mixing and stirring device, suitable for processes such as material dissolution, mixing, blending, and reaction across a wide range of industries.
