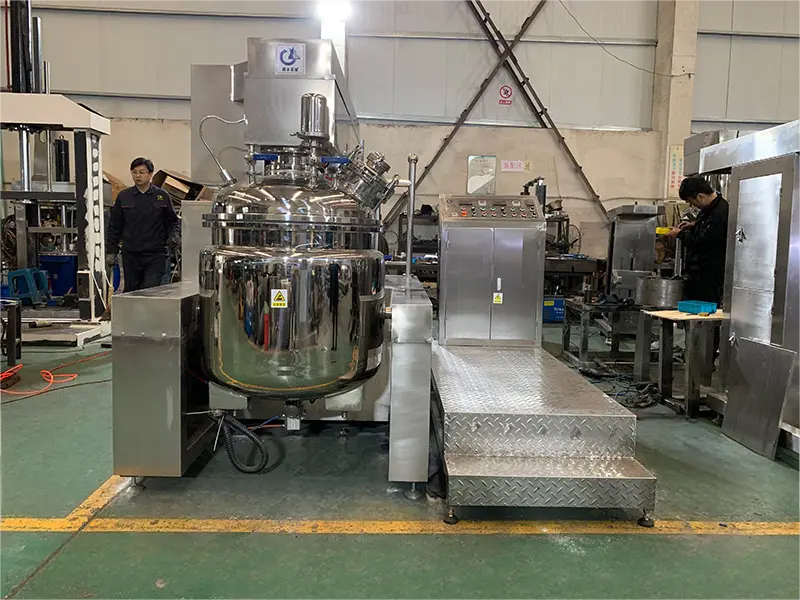

250L Vacuum Emulsifying Homogenizer Mixer
The 250L Vacuum Emulsifying Homogenizer Mixer, with 250L capacity, enables vacuum-driven bubble-free mixing/emulsification. Its 3000rpm homogenizer refines particles to microns, while anchor+paddle agitators blend varied viscosities. 304/316L stainless steel meets GMP, suiting cosmetics, pharmaceuticals, etc. It has touchscreen control, safety locks, and easy cleaning for batch production.
Always on time
Acceptable price
Excellent quality
Description
Feature&Application
Factory Strength
The 250L Vacuum Emulsifying Homogenizer Mixer stands as a pivotal piece of equipment in industries requiring high-quality emulsified and homogenized products, integrating advanced vacuum technology, high-speed shearing, and efficient mixing. Its 250-liter nominal capacity balances batch production efficiency and operational flexibility, catering to medium-scale manufacturing needs.
At the core of its performance is the vacuum system, which creates a negative-pressure environment (usually -0.095MPa or higher) during operation. This eliminates air entrainment that would otherwise cause bubbles, oxidation, or bacterial contamination, critical for products like cosmetics and pharmaceuticals where texture and stability are paramount.
The equipment’s homogenization unit delivers exceptional particle refinement. Driven by a powerful motor, the high-speed rotor-stator homogenizer reaches rotational speeds of 2800-3600rpm, generating intense shearing, impact, and cavitation forces. These forces break down solid particles and oil droplets into 1-5μm, achieving a stable, uniform emulsion that resists stratification over time.

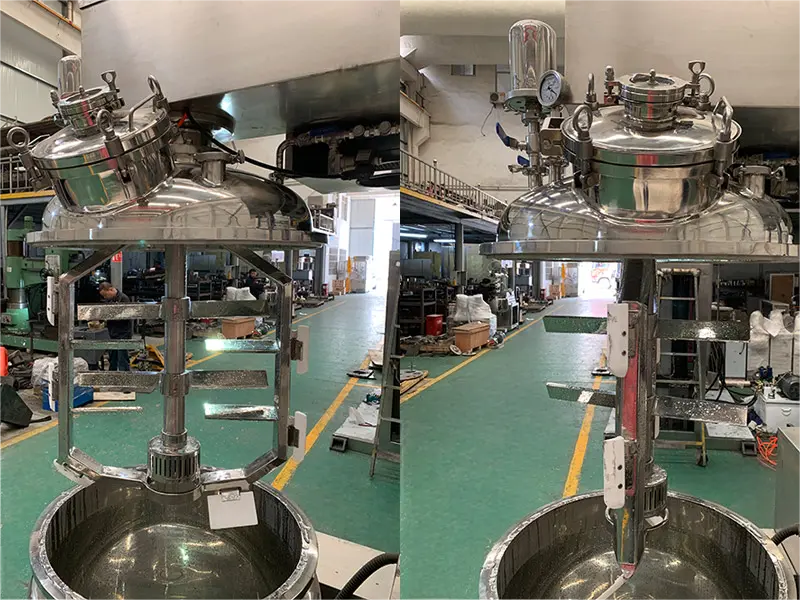

Complementing the homogenizer is a dual-agitator system: an anchor agitator for scraping the tank wall and bottom to prevent material buildup and ensure temperature uniformity, and a paddle agitator for vertical and horizontal mixing of materials with viscosities up to 100,000cP.
Complementing the homogenizer is a dual-agitator system: an anchor agitator for scraping the tank wall and bottom to prevent material buildup and ensure temperature uniformity, and a paddle agitator for vertical and horizontal mixing of materials with viscosities up to 100,000cP.

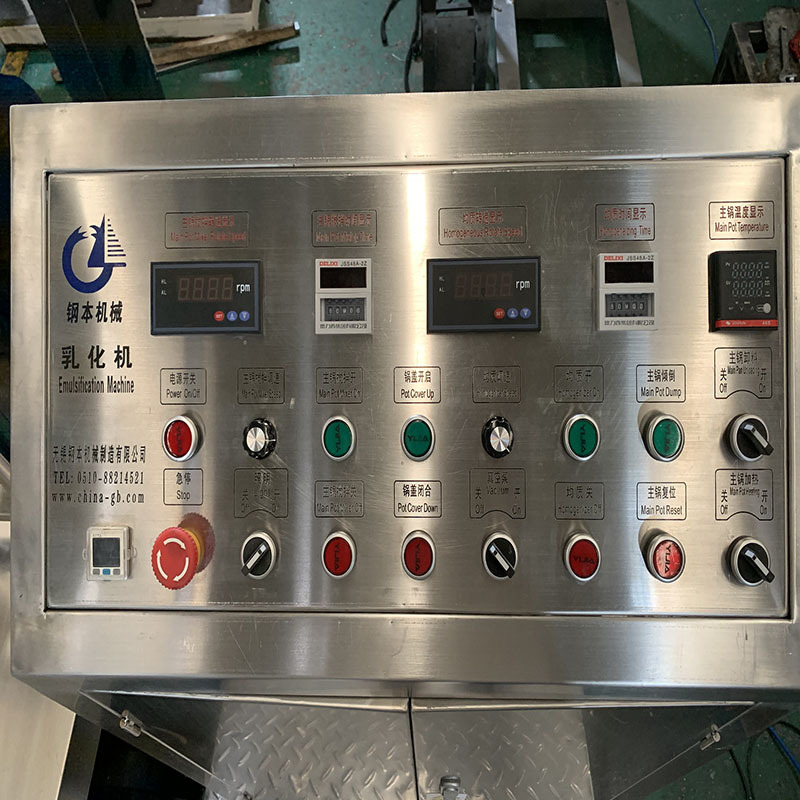

Constructed from food-grade 304 or pharmaceutical-grade 316L stainless steel, the tank and contact parts are corrosion-resistant and easy to clean, complying with GMP and FDA standards. The touchscreen PLC control system allows precise adjustment of temperature (up to 120℃), vacuum level, homogenization speed, and mixing time, with automatic parameter storage for repeatable production.
Safety features include interlocks for the tank lid and homogenizer, over-temperature/over-pressure alarms, and emergency stop buttons. Widely used in cosmetics (creams, serums), pharmaceuticals (ointments, emulsions), food (dairy products, sauces), and chemicals (lubricants, coatings), it empowers manufacturers to consistently produce high-quality, stable products.
Gangben Mixer Factory produces a variety of vacuum homogenizing emulsifiers. Its homogenizing system is divided into upper homogenization, lower homogenization, and internal-external circulation homogenization; the mixing system adopts positive and negative bidirectional wall-mounted mixing paddles; the lifting system is divided into electric lifting and hydraulic lifting. The factory can customize high-quality emulsifying machine products of various specifications according to customer requirements. The triple mixing adopts imported inverter for speed regulation, which can meet the production needs of different processes.
It adopts imported mechanical seals with excellent performance and German homogenizing structure technology, with the maximum emulsification speed reaching 3400 RPM and the minimum shear fineness reaching 0.2~5μm.
Vacuum defoaming enables materials to meet aseptic requirements, and vacuum suction is adopted—especially for powder materials, as vacuum inhalation can avoid dust flying.

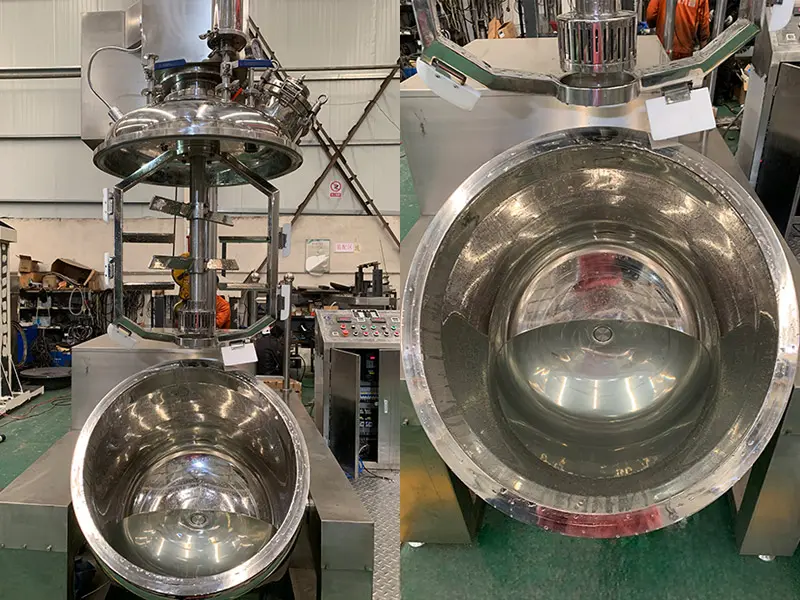

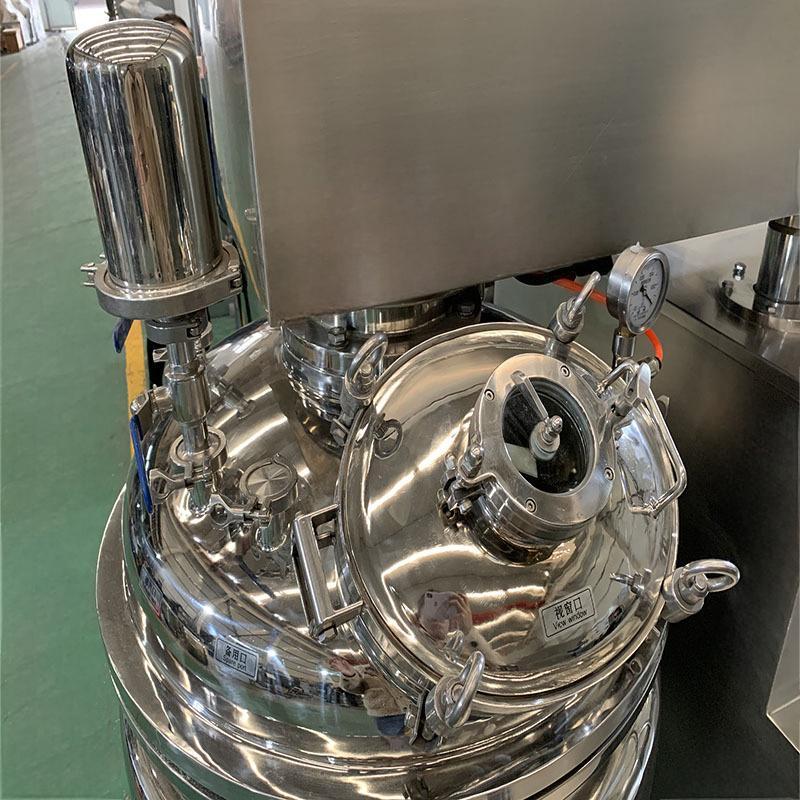

The main pot cover can be equipped with an optional lifting device, which enhances the cleaning effect, and the pot body can be tilted for discharging.
The pot body is welded with three layers of imported stainless steel plates, and the tank body and pipelines are polished or matte-finished, fully complying with GMP requirements.
The tank can heat and cool materials, with the main heating methods being steam heating and electric heating.
To ensure more stable control of the entire machine, the electrical components are imported and fully meet international technical standards.

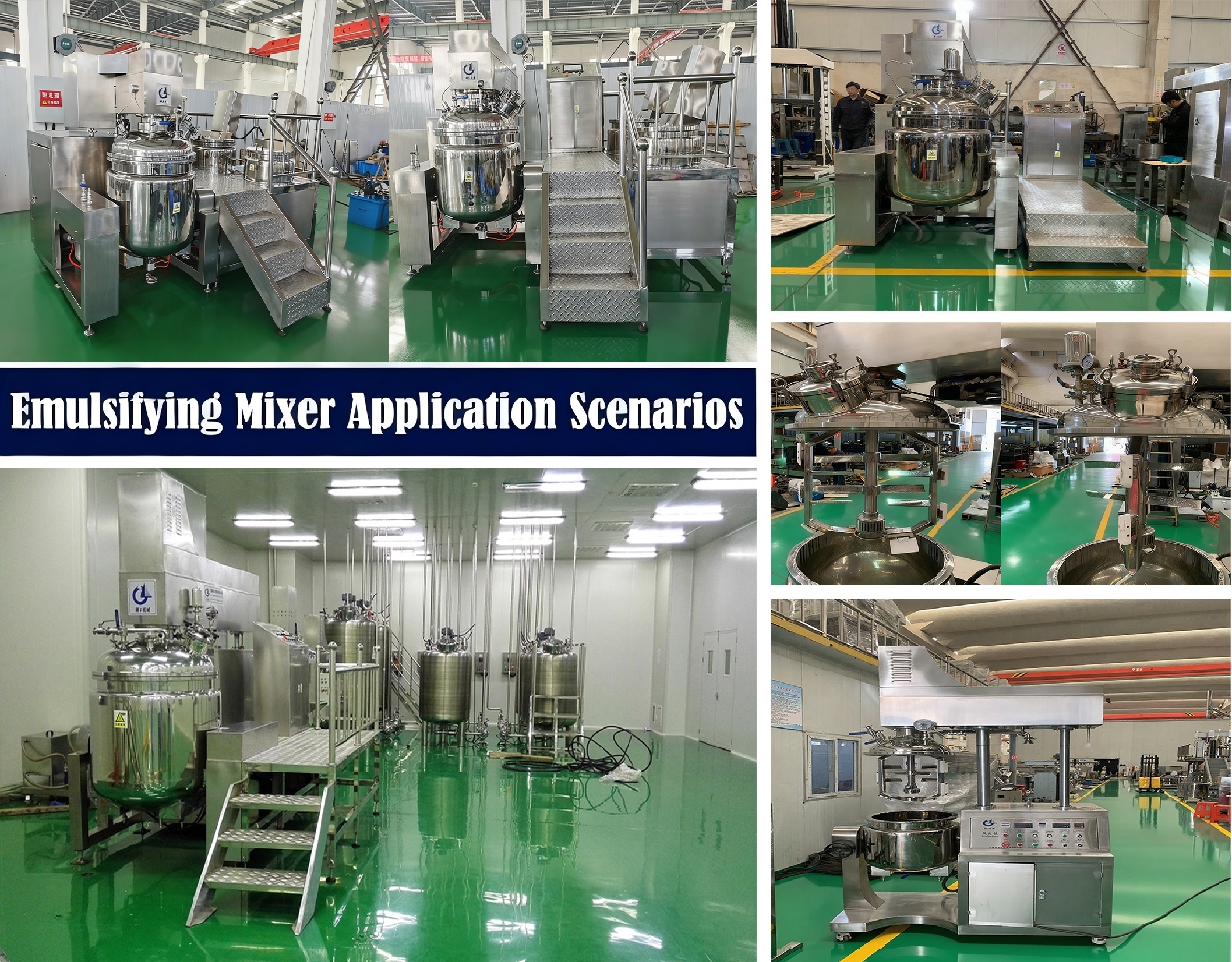

Application Area
Vacuum emulsifying mixers are used in many application areas, as follows:
Daily chemical products: Used in the production of emulsions, creams, shampoos, shower gels, etc.
Biomedicine: Used in the production of medical emulsions, ointments, oral liquids, etc.
Food industry: Used in the production of emulsified foods, such as yogurt, ice cream, cheese, etc.
Paint and ink: Used in the production of emulsified paints and inks.
Nanomaterials: Used in the preparation of nanomaterials.
Petrochemical industry: Used in the production of emulsified petroleum products.
Printing and dyeing auxiliaries: Used in the production of emulsified paper treatment agents.
Pesticides and fertilizers: Used in the production of emulsified pesticides and fertilizers.
Plastic and rubber: Used in the production of emulsified plastic and rubber materials.
Electric power and electronics industry: Used in the production of emulsified insulation materials and electronic components.
Other fine chemical engineering fields: Such as ceramics, glass, metal processing, etc.
In short, vacuum emulsifying machines have a wide range of applications and are mainly used to produce emulsified products, helping to improve product stability and performance in various industries.Gangben Mixer Manufacturer specializes in the research, development, production, and sales of mixing machines and filling machines. Its main products include vacuum emulsifying mixers, high-shear emulsifying mixers, vacuum homogenizing emulsifiers, filling and sealing machines, and liquid filling production lines. Equipped with modern production workshops and environments, we adopt advanced equipment manufacturing technologies and strict process quality management and control measures to ensure that all products are free from defects before leaving the factory.
Gangben Mixer Factory has obtained multiple patents for the research and development of emulsifying machines and planetary mixers, as well as ISO quality management system certification and international CE certification. Our products meet quality standards with a reliable quality guarantee. We are committed to manufacturing high-quality mixing machinery to enhance your production efficiency and reduce costs for your company.
