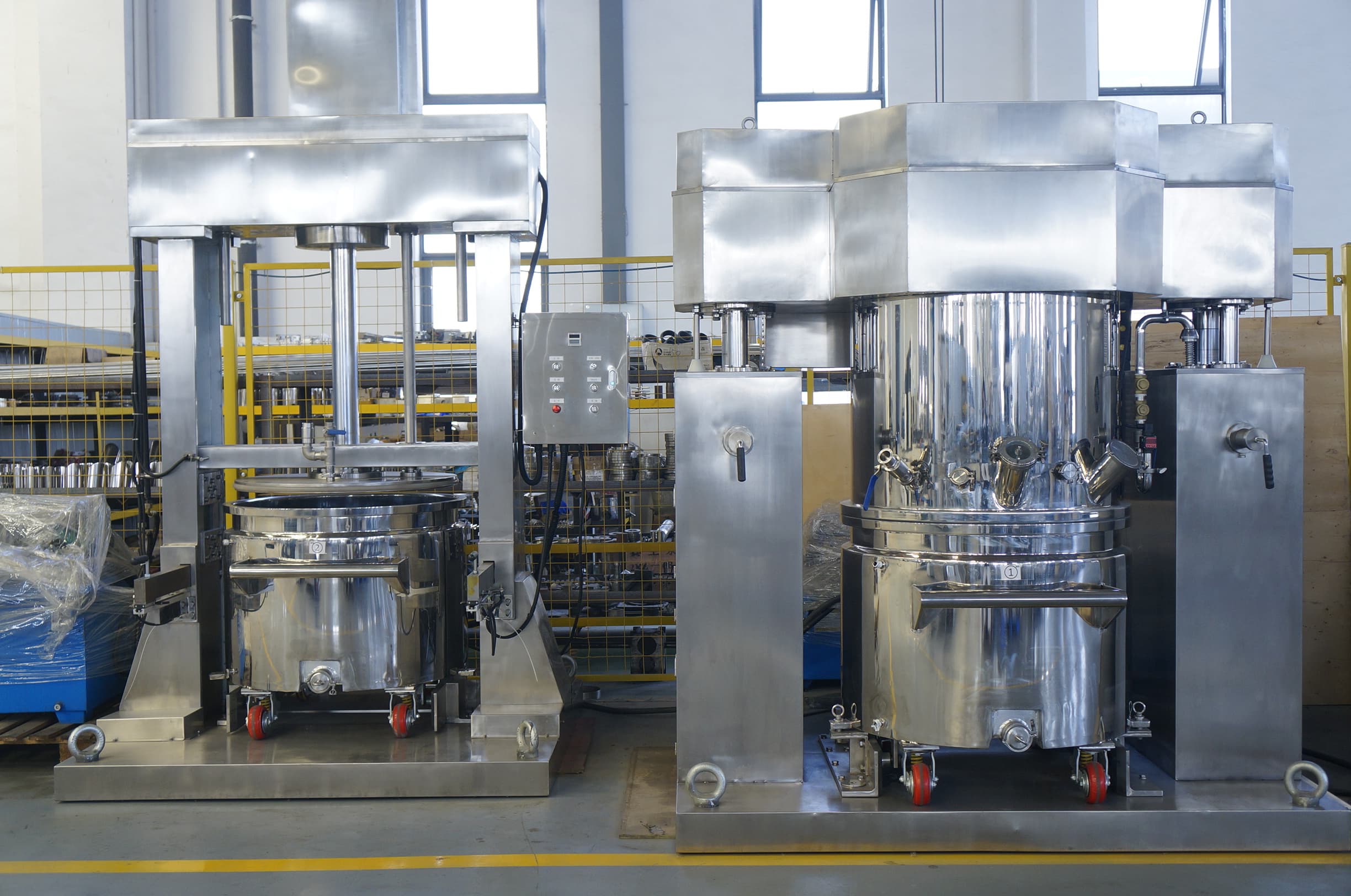

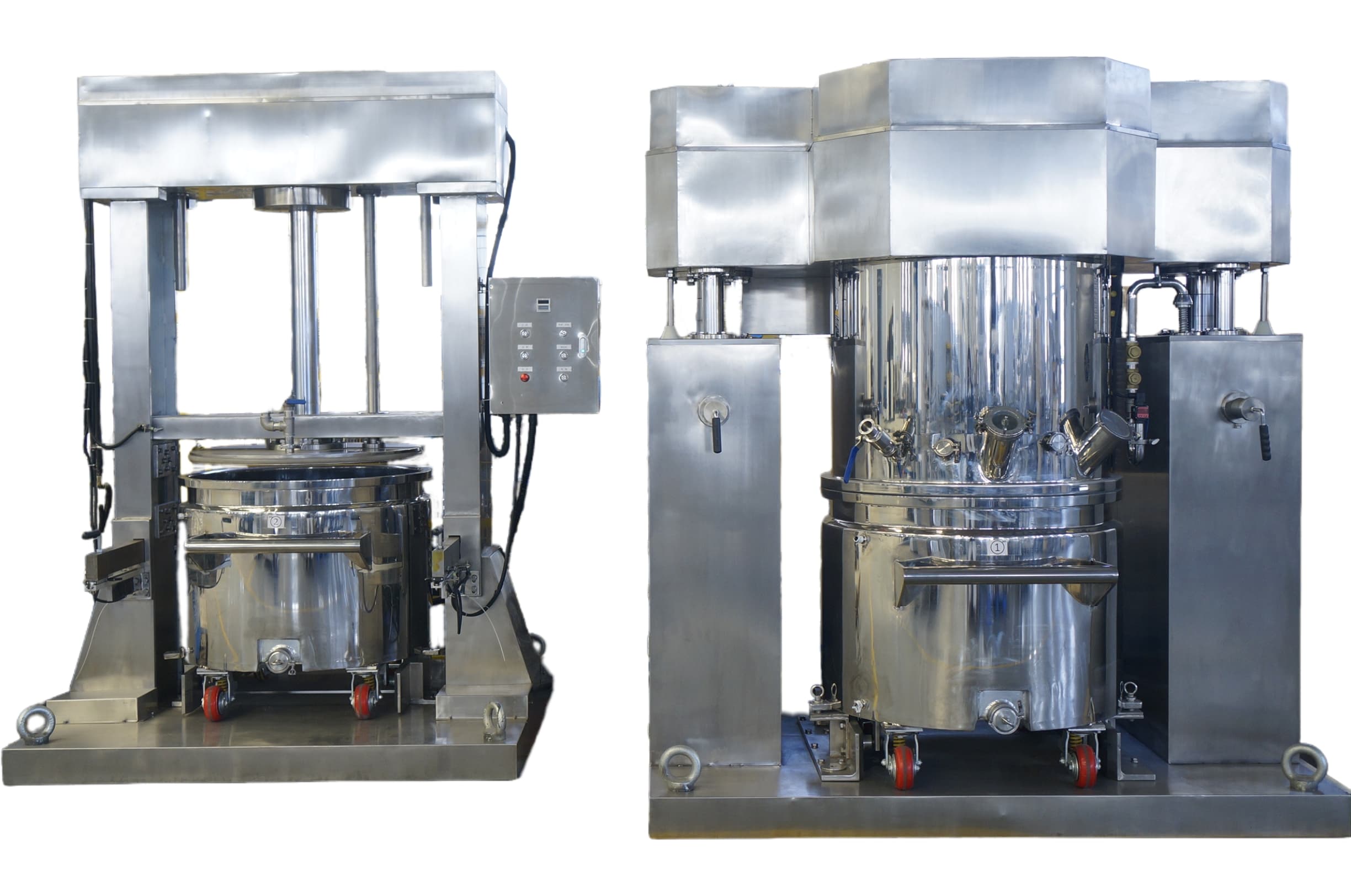

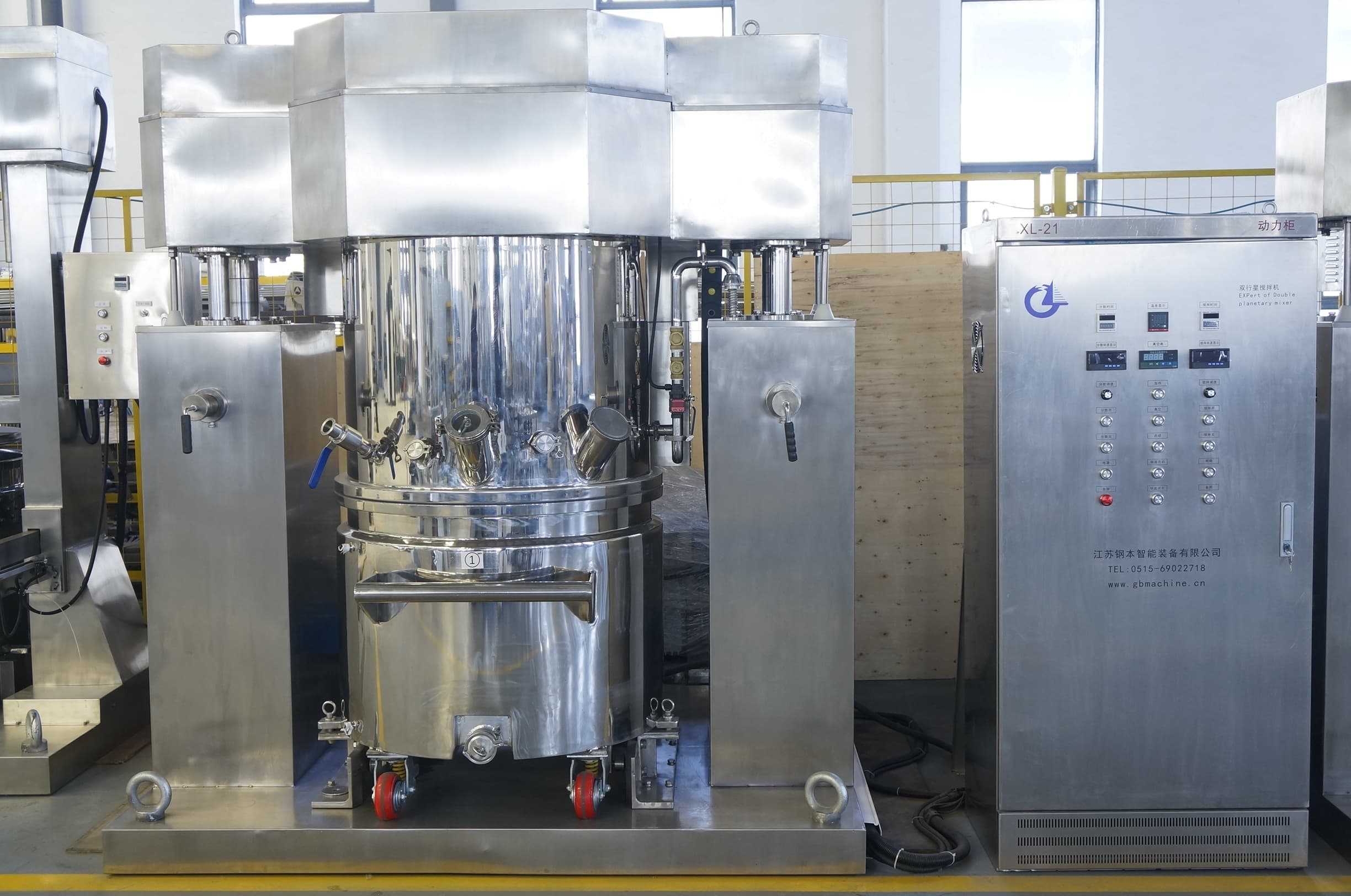

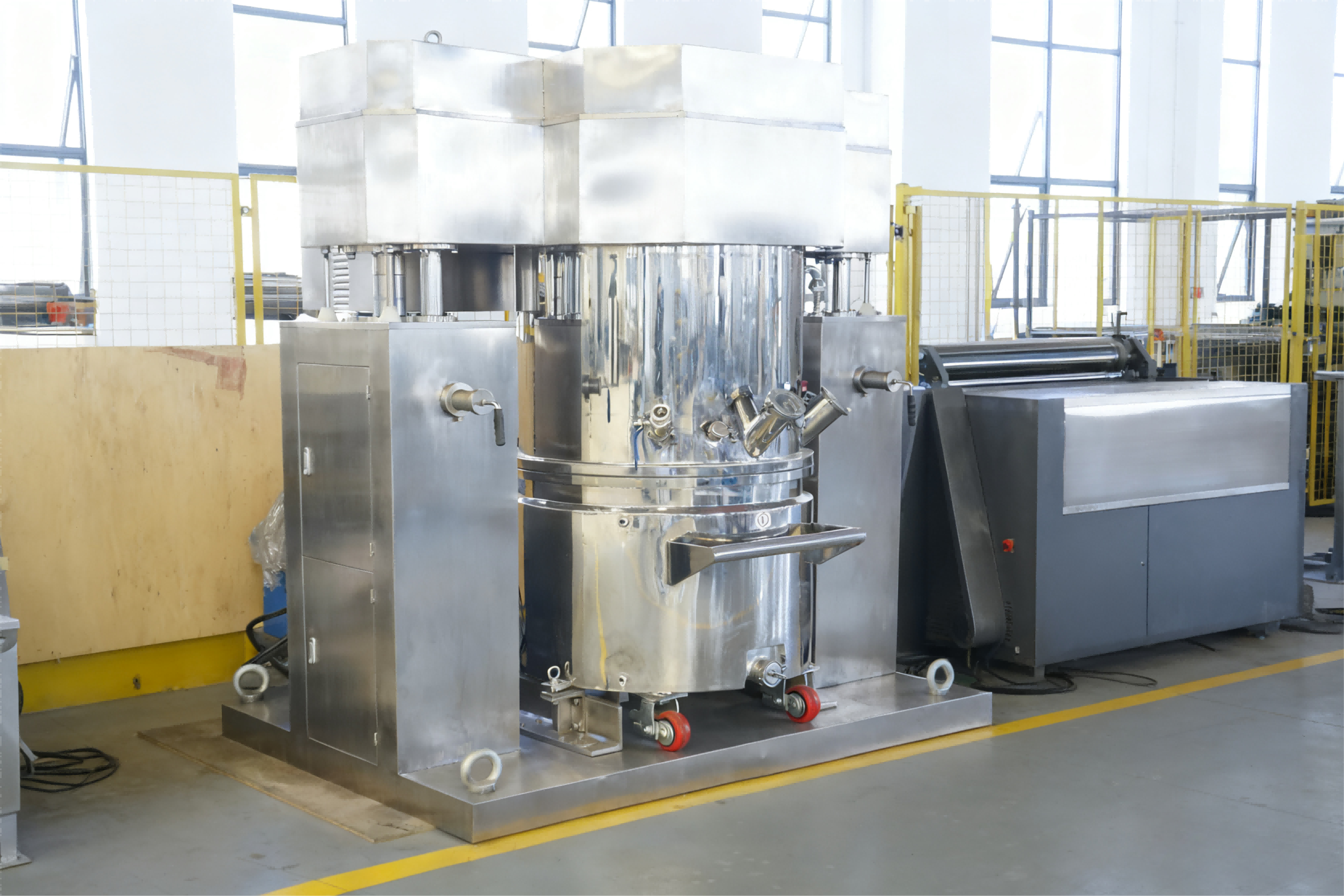

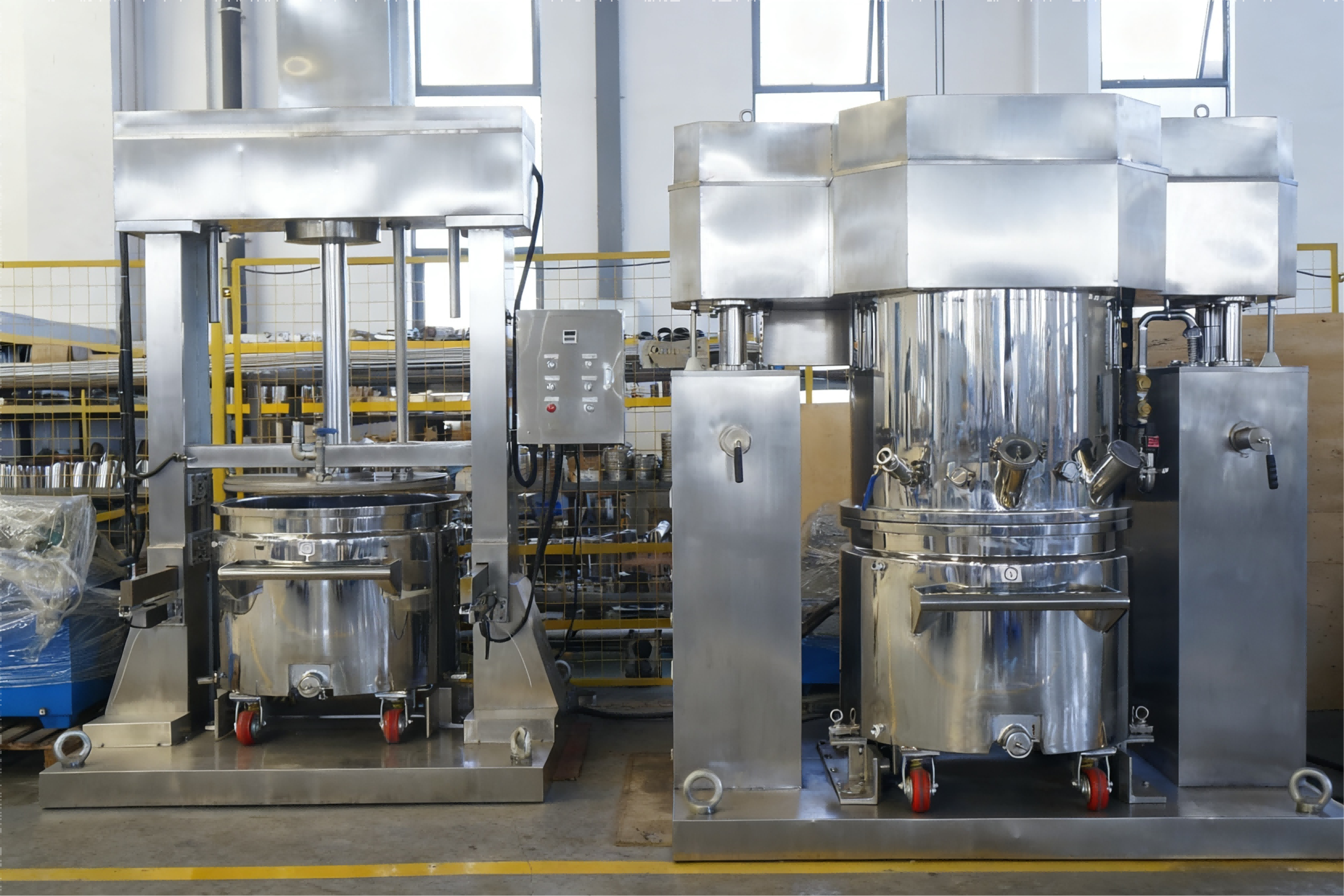

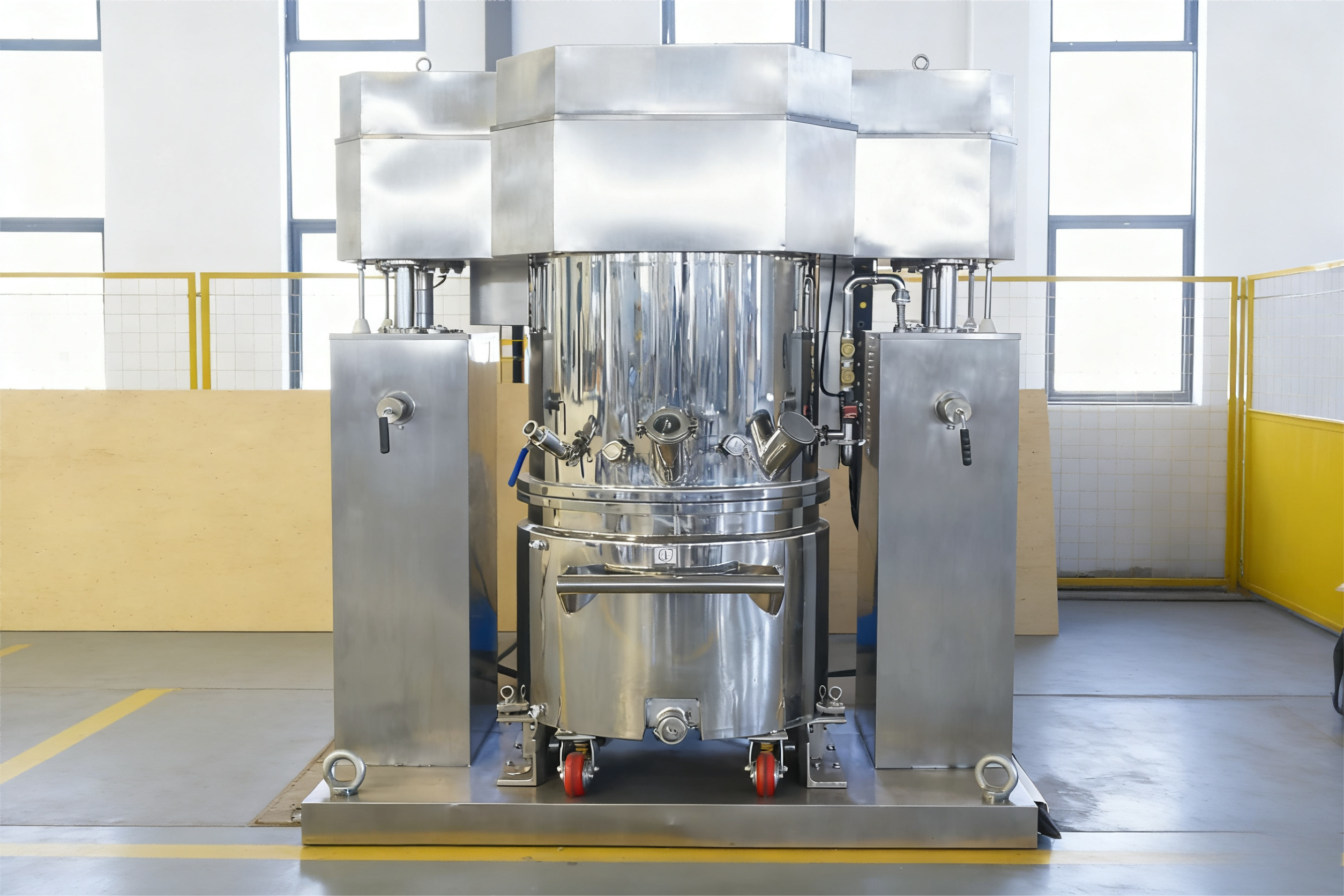

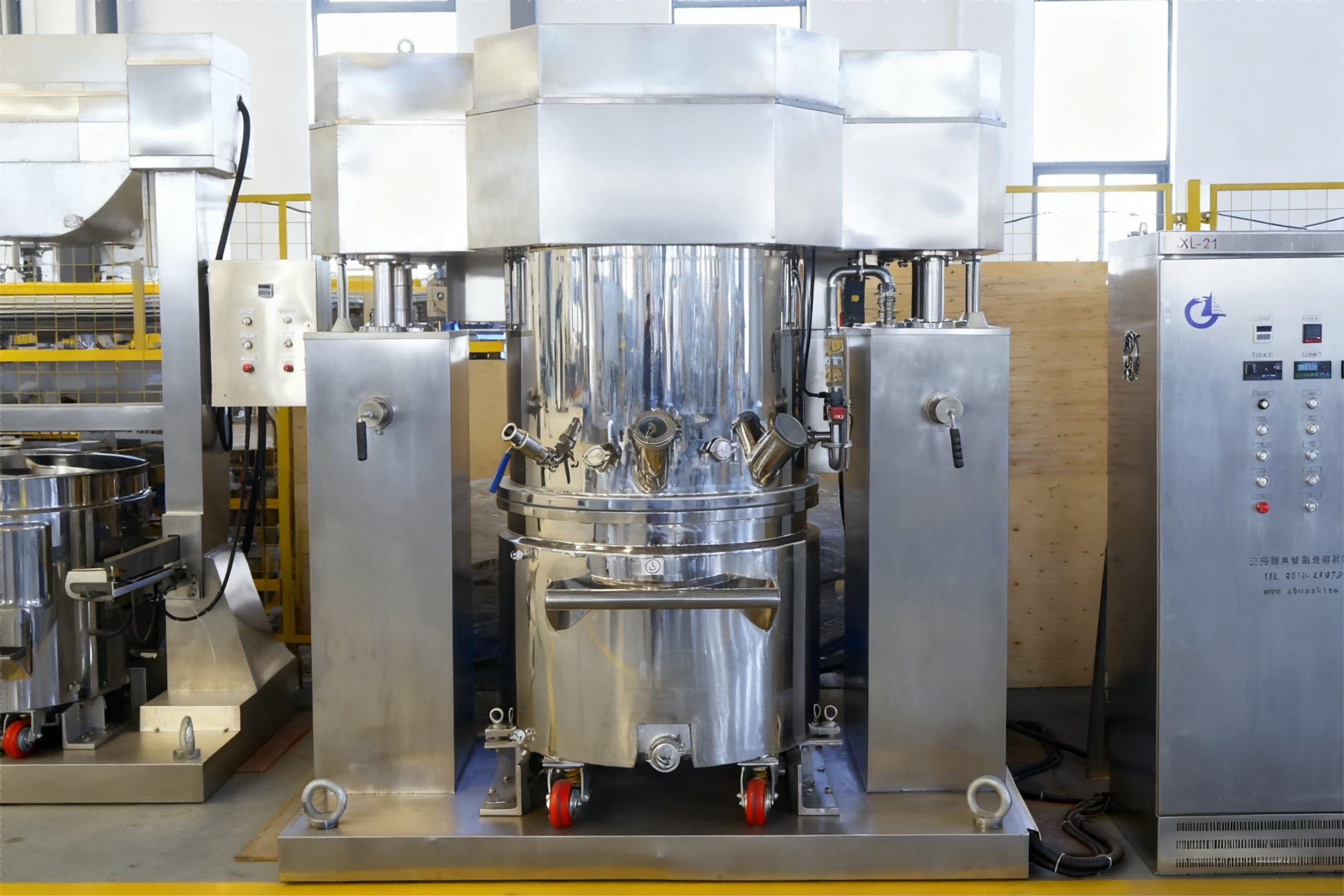

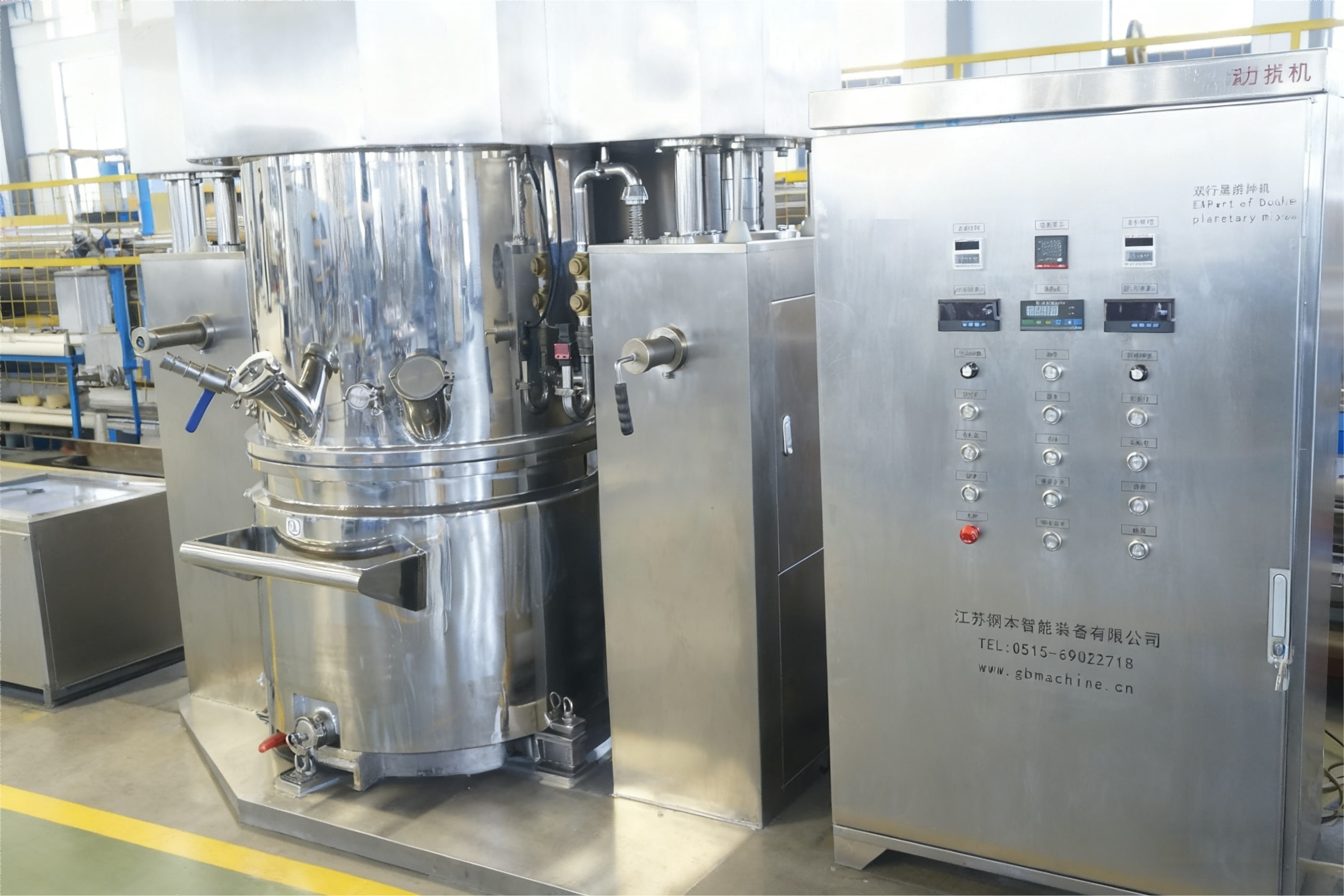

300L Double Planetary Mixer with Press Feeder
The 300L Double Planetary Mixer with Press Feeder is a heavy-duty industrial solution engineered for large-batch production in chemicals, adhesives, pharmaceuticals, and composites. Its dual planetary agitators deliver simultaneous rotation and orbit, ensuring uniform mixing of ultra-high-viscosity materials (up to 3,000,000 cP). The integrated pneumatic press feeder enables continuous, automated feeding, eliminating bridging and boosting production efficiency. Constructed with 304/316L stainless steel, it meets FDA, GMP, and CE standards. Equipped with a programmable touchscreen and multi-layer safety systems, it balances precision, durability, and operational safety for high-volume manufacturing.
Always on time
Acceptable price
Excellent quality
Description
Feature&Application
Factory Strength
The 300L Double Planetary Mixer with Press Feeder is built to meet the rigorous demands of large-scale industrial production, offering unmatched efficiency and consistency for high-viscosity material mixing. At its core, the dual heavy-duty planetary agitators operate at adjustable speeds (0-65 rpm), rotating independently while orbiting the 300L stainless steel mixing tank. This dynamic motion generates intense shear, kneading, and folding forces, ensuring complete homogenization of ultra-high-viscosity substances—including epoxy resins, silicone rubbers, pharmaceutical creams, and composite slurries—even at viscosities up to 3,000,000 cP, eliminating dead zones common in conventional mixers.
The seamlessly integrated pneumatic press feeder is a production-critical feature, automating material feeding to minimize manual intervention. With adjustable pressure ( 》-0.096 MPa), it adapts to diverse material properties, preventing bridging, clumping, and uneven flow—issues that often disrupt large-batch production. The feeder’s large hopper capacity ensures continuous supply to the mixing tank, reducing downtime and increasing overall throughput by up to 30% compared to manual feeding systems.
Constructed for durability and compliance, all material-contact components (tank, agitators, feeder) are made of 304 stainless steel, with 316L available for corrosion-sensitive applications. This design meets global standards including FDA, GMP, and CE, making it suitable for regulated industries like food, pharmaceuticals, and cosmetics. The tank’s smooth interior and easy-to-access design simplify cleaning, supporting quick product changeovers.
User-centric operation is enabled by a programmable touchscreen control panel, which allows precise setting of mixing speed, time, and feeder pressure. It can store up to 30 custom programs, ensuring repeatability for consistent batch quality. Safety is paramount: the mixer features emergency stop buttons, tank cover interlocks, overload protection, thermal overload safeguards, and a safety guard system, fully complying with OSHA and EU machinery safety regulations.

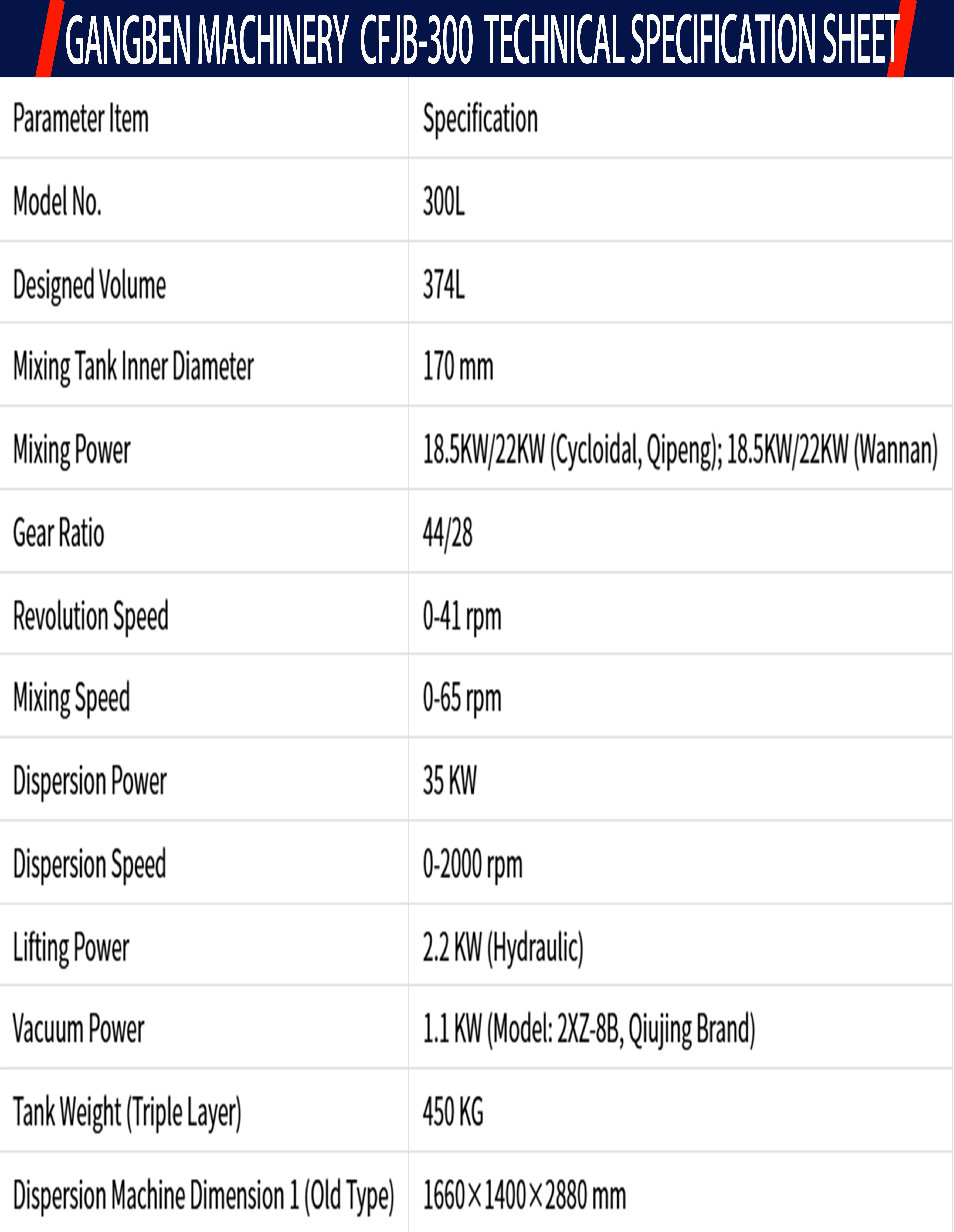

Its robust steel frame ensures stability during heavy-load operation, while optional features like vacuum degassing (to remove air bubbles) and heating/cooling jackets (for temperature-sensitive materials) enhance versatility. With a footprint of approximately 1660*1400*2880 mm, it optimizes workshop space without compromising performance.
Ideal for large-scale manufacturers of adhesives, sealants, pharmaceuticals, and composites, this mixer streamlines high-volume production, reduces material waste, and shortens lead times. Backed by a 12-month warranty, global after-sales support, and on-site installation assistance, the 300L Double Planetary Mixer with Press Feeder is a reliable, high-performance investment for industrial-scale mixing needs.
Features
Dual-planetary Agitation Motion: The mixing paddles perform both revolution (around the central axis of the mixing vessel) and rotation (around their own axes) simultaneously, mimicking the orbital motion of planets. This unique motion ensures comprehensive coverage of the entire vessel, eliminating mixing dead zones even in the corners and bottom.
Excellent Mixing for High-Viscosity Materials: It is specially designed to handle high-viscosity substances (typically up to several hundred thousand to over a million centipoise), such as adhesives, sealants, gels, and high-concentration pastes. The strong shear and kneading forces generated by the dual motion enable thorough blending of thick materials.
Versatile Paddle Options: Various types of mixing paddles (e.g., anchor paddles, dispersing discs, sigma blades) can be configured based on material properties and mixing requirements. This versatility allows it to adapt to different processes like mixing, dispersing, kneading, and degassing.
Optional Vacuum/Pressure Function: Many models are equipped with a vacuum system to remove air bubbles from the mixture, improving product density and quality. Some can also operate under positive pressure to handle volatile or special materials.
Easy Cleaning and Maintenance: The mixing vessel can often be tilted or lifted for convenient discharging of materials. Additionally, the design of detachable paddles and a smooth inner wall of the vessel facilitates thorough cleaning, meeting the hygiene standards of industries such as food, pharmaceuticals, and cosmetics.
Stable and Reliable Operation: The equipment adopts a rigid transmission structure and high-quality components, ensuring stable operation even under heavy-load mixing conditions. It also features multiple safety protections (e.g., overload protection, emergency stop) to guarantee operational safety.
Customizable Configurations: The capacity (from lab-scale small volumes to industrial large volumes), material of construction (stainless steel 304, 316L, etc.), and auxiliary systems (heating/cooling jackets, material feeding devices) can be customized according to specific production needs.
Application Areas
Double planetary mixers are widely used in many fields, as follows:
Daily chemical products: Used in the production of emulsions, creams, shampoos, shower gels, and other products that require fine texture and stable performance.
Biomedicine: Applied in the production of medical emulsions, ointments, oral liquids, and other preparations, meeting strict aseptic and fineness standards.
Food industry: Suitable for the production of emulsified foods such as yogurt, ice cream, cheese, and other products that require uniform mixing and stable quality.
Paint and ink: Used in the production of emulsified paints and inks, ensuring fine dispersion of components and stable product performance.
Nanomaterials: Applied in the preparation of nanomaterials, realizing efficient mixing and dispersion of nanoscale materials.
Petrochemical industry: Used in the production of emulsified petroleum products, improving product stability and usability.
Printing and dyeing auxiliaries: Suitable for the production of emulsified paper treatment agents and other printing and dyeing auxiliary products.
Pesticides and fertilizers: Used in the production of emulsified pesticides and fertilizers, enhancing the uniformity and effectiveness of products.
Plastic and rubber: Applied in the production of emulsified plastic and rubber materials, ensuring uniform distribution of additives.
Electric power and electronics industry: Used in the production of emulsified insulation materials and electronic components, meeting the industry's high-performance requirements.
Other fine chemical engineering fields: Such as the production of ceramic materials, glass processing auxiliaries, metal processing fluids, etc., providing reliable mixing solutions.
In short, double planetary mixers have a wide range of applications, mainly used to produce emulsified products and high-consistency materials. They play a key role in improving product stability, fineness, and overall performance in various industries.Gangben Mixer Manufacturer specializes in the research, development, production, and sales of mixing machines and filling machines. Its main products include vacuum emulsifying mixers, high-shear emulsifying mixers, vacuum homogenizing emulsifiers, filling and sealing machines, and liquid filling production lines. Equipped with modern production workshops and environments, we adopt advanced equipment manufacturing technologies and strict process quality management and control measures to ensure that all products are free from defects before leaving the factory.
Gangben Mixer Factory has obtained multiple patents for the research and development of emulsifying machines and planetary mixers, as well as ISO quality management system certification and international CE certification. Our products meet quality standards with a reliable quality guarantee. We are committed to manufacturing high-quality mixing machinery to enhance your production efficiency and reduce costs for your company.
