50L Double Planetary Mixer with Press Feeder

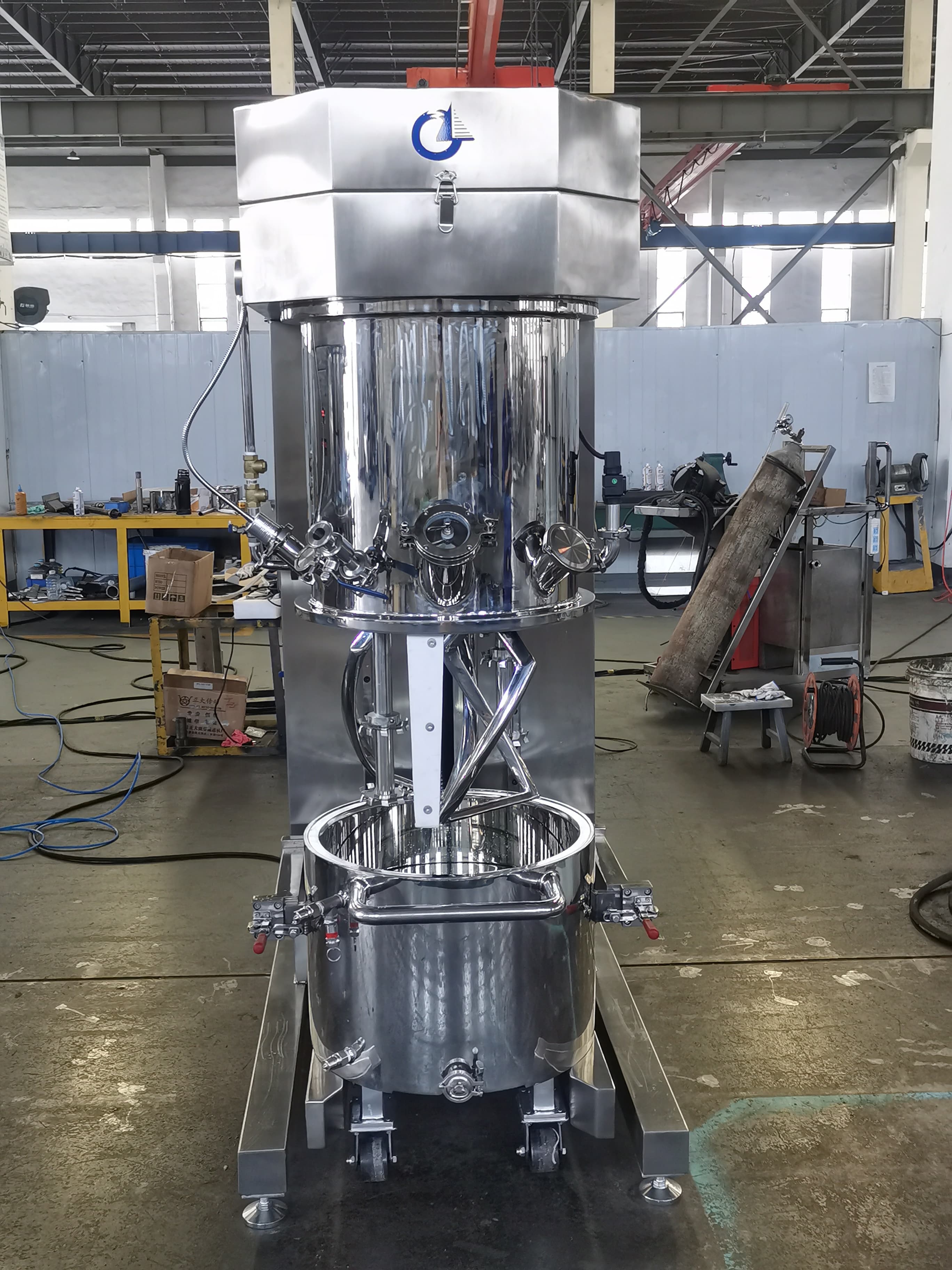

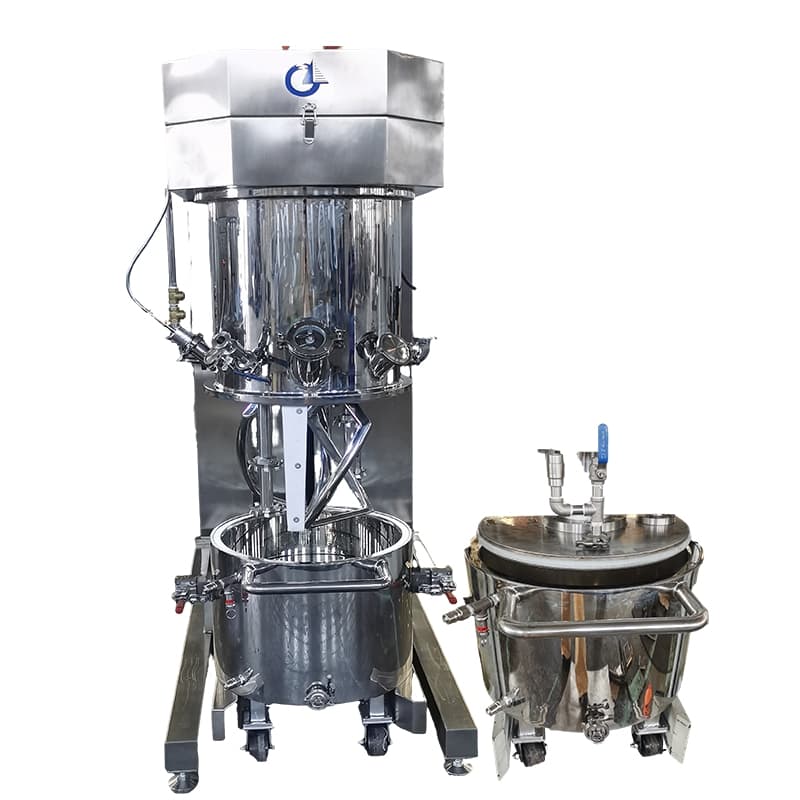

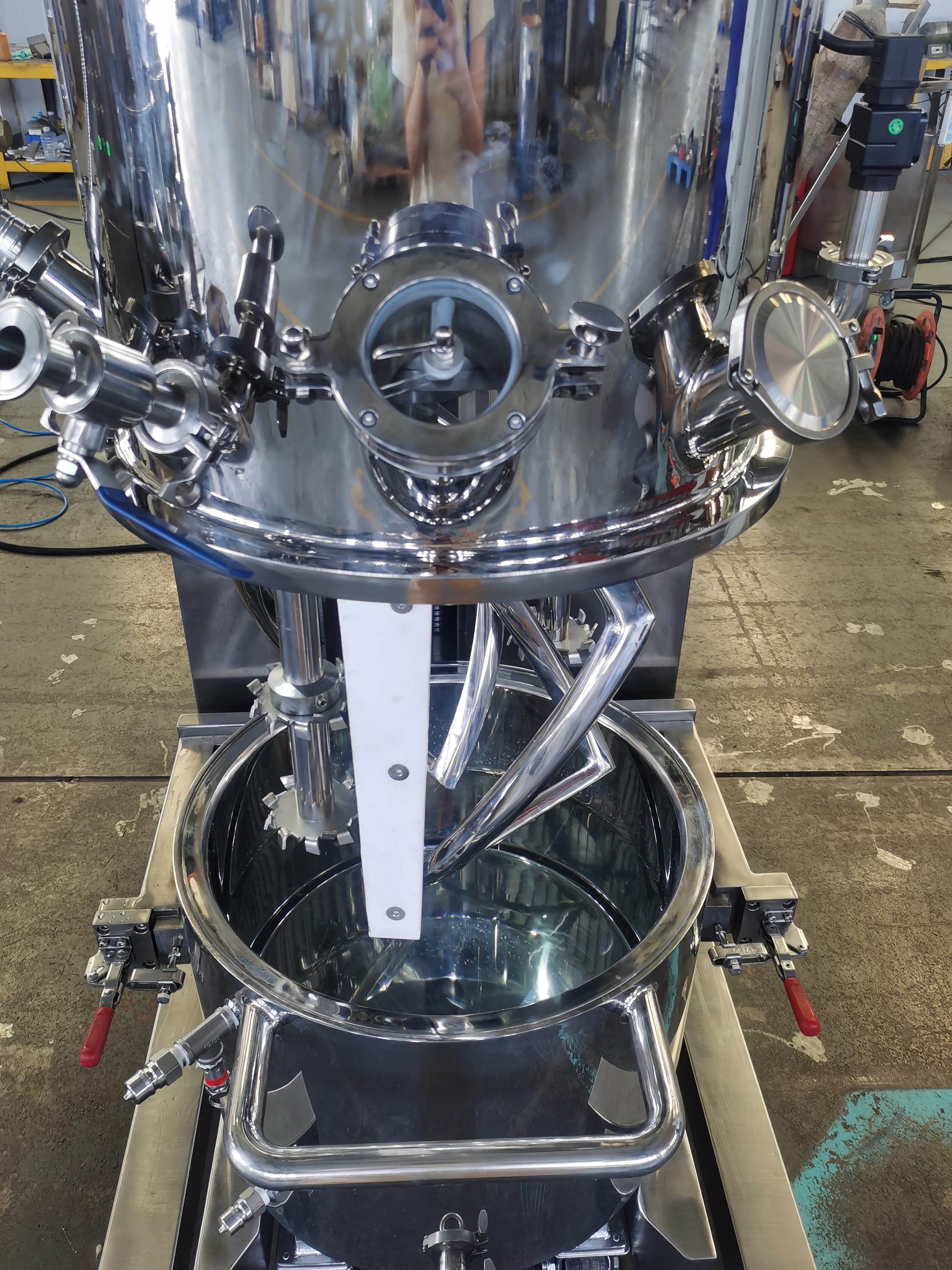

The 50L Double Planetary Mixer with Press Feeder is a high-performance industrial mixing solution designed for medium-batch production across sectors like chemicals, adhesives, and pharmaceuticals. Its dual planetary agitators rotate and orbit simultaneously, ensuring uniform blending of high-viscosity materials (up to 2,000,000 cP). The integrated pneumatic press feeder eliminates material bridging, enabling consistent, automated feeding to boost productivity. Crafted with 304/316L stainless steel contact parts, it meets FDA, GMP, and CE standards. Equipped with a digital control panel and multi-layer safety protections, it balances precision, durability, and ease of operation, ideal for scaling up production from pilot to commercial batches.
Always on time
Acceptable price
Excellent quality
Description
Feature&Application
Factory Strength
The 50L Double Planetary Mixer with Press Feeder is engineered to address the demands of medium-batch industrial production, offering reliable, efficient mixing for high-viscosity and high-solid-content materials. At its core, the dual planetary agitator system features two heavy-duty stirrers that operate at adjustable speeds (0-170 rpm) — rotating on their own axes while orbiting the 50L stainless steel mixing tank. This unique motion creates intense shear, kneading, and folding forces, eliminating dead zones and ensuring thorough homogenization of materials such as epoxy resins, silicone sealants, pharmaceutical pastes, and composite slurries, even at extreme viscosities up to 2,000,000 cP.

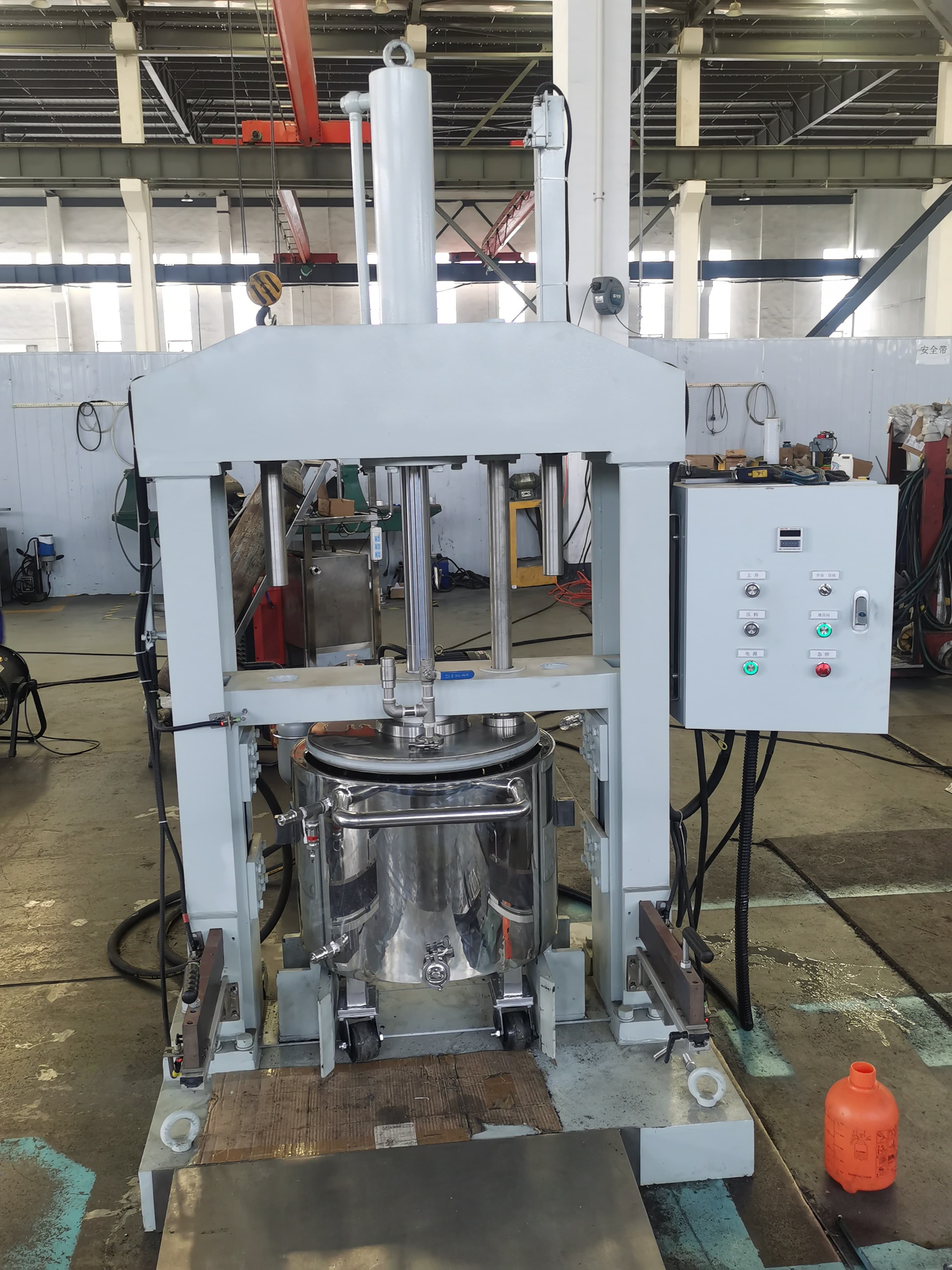

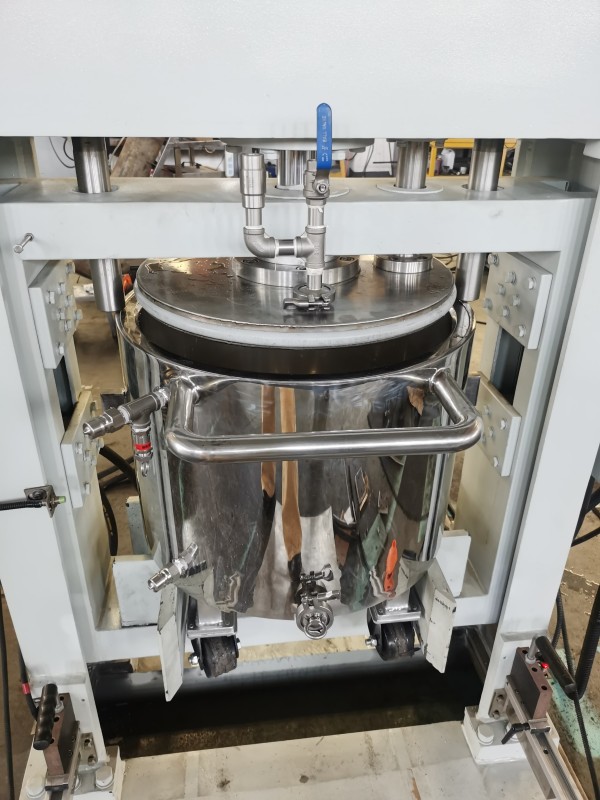

Seamlessly integrated with the mixer, the pneumatic press feeder automates the feeding process, a critical advantage for handling sticky or bulky materials. With adjustable pressure (》-0.096 MPa), it adapts to diverse material properties, preventing bridging, clumping, and uneven flow, thus reducing manual labor and minimizing production interruptions. The tank, agitators, and feeder contact surfaces are constructed from food-grade 304 stainless steel (316L optional), ensuring corrosion resistance, easy cleaning, and compliance with global standards including FDA, GMP, and CE, making it suitable for sensitive applications in food, pharmaceuticals, and cosmetics.
User-friendliness and safety are prioritized in its design. The digital touchscreen control panel allows precise setting and monitoring of mixing speed, time, and feeder pressure, while supporting storage and recall of up to 20 custom programs for repeatable processes. Safety features include emergency stop buttons, tank cover interlocks, overload protection, and thermal sensors, ensuring compliance with industrial safety regulations and protecting operators and equipment. Its robust steel frame and compact footprint (approx. 1700×790×1850 mm) optimize workshop space, while optional casters enhance mobility for flexible layout.
Ideal for adhesive manufacturers, pharmaceutical producers, and composite material plants, this mixer streamlines medium-batch production, reduces material waste by up to 20%, and shortens processing cycles. It seamlessly bridges the gap between pilot-scale R&D and full commercial production. Backed by a 12-month warranty, global after-sales support, and optional upgrades like vacuum degassing or heating/cooling jackets, the 50L Double Planetary Mixer with Press Feeder delivers unmatched versatility and performance for modern industrial mixing needs.
Features

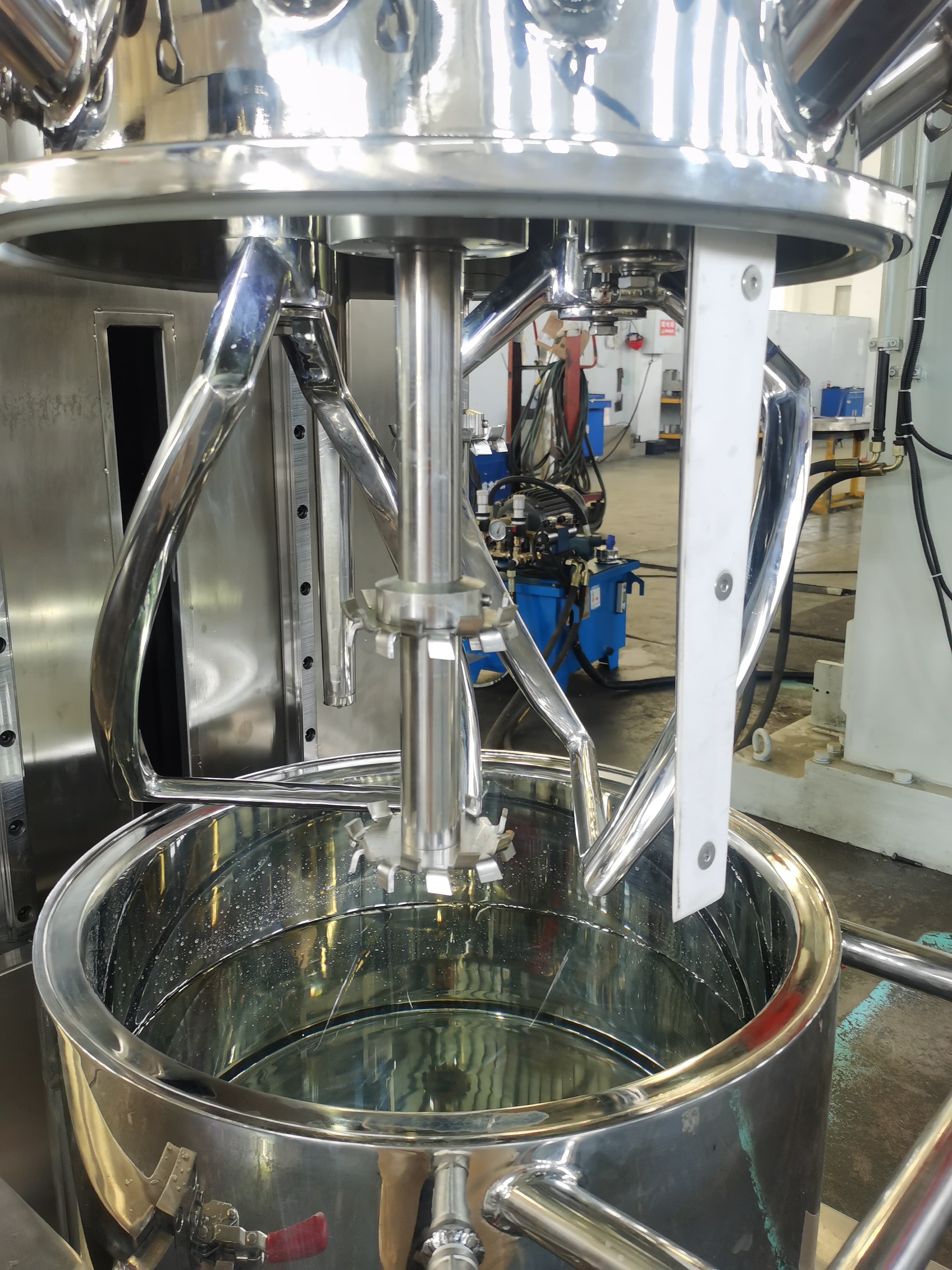

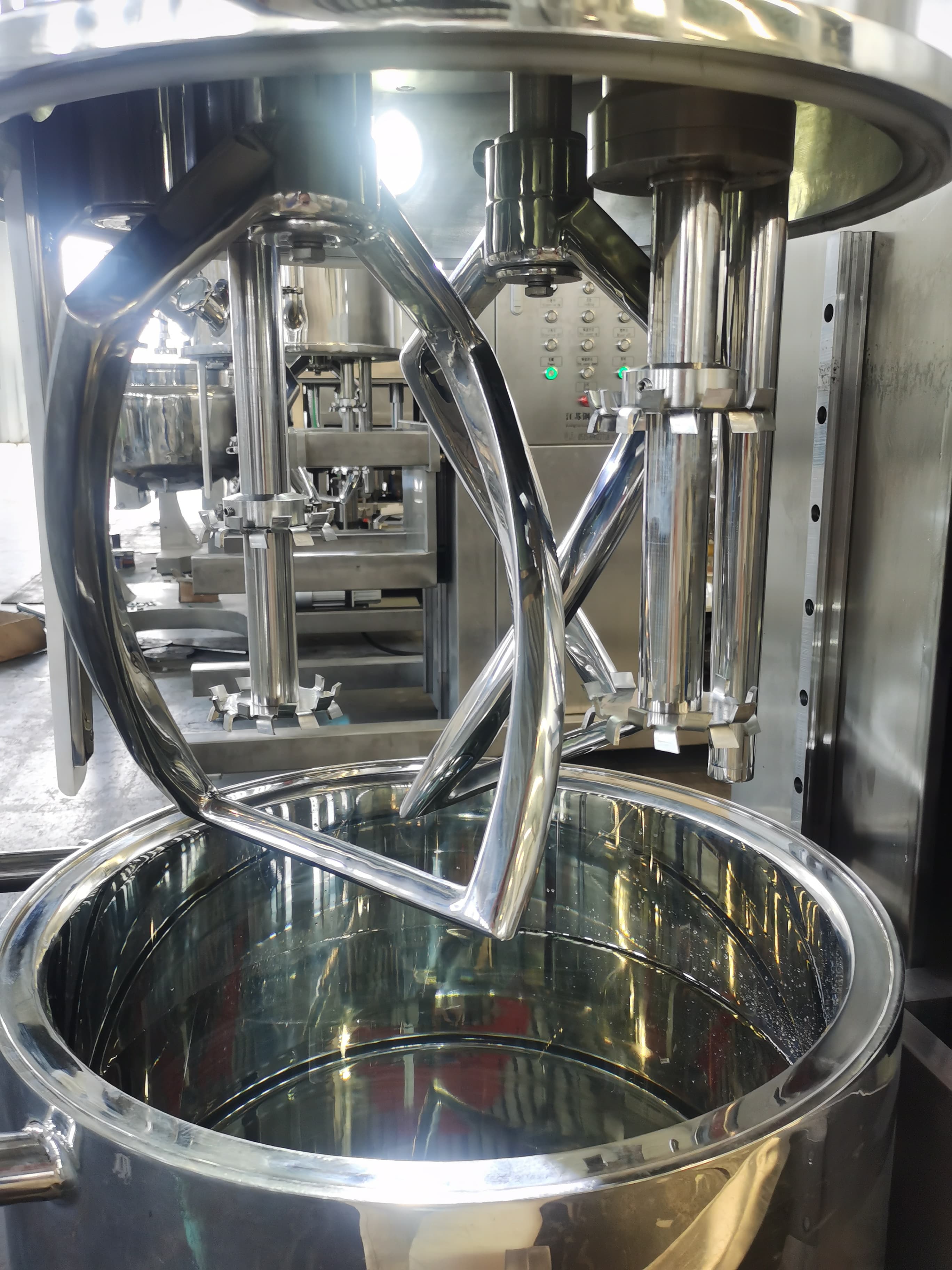

Dual-planetary Agitation Motion: The mixing paddles perform both revolution (around the central axis of the mixing vessel) and rotation (around their own axes) simultaneously, mimicking the orbital motion of planets. This unique motion ensures comprehensive coverage of the entire vessel, eliminating mixing dead zones even in the corners and bottom.
Excellent Mixing for High-Viscosity Materials: It is specially designed to handle high-viscosity substances (typically up to several hundred thousand to over a million centipoise), such as adhesives, sealants, gels, and high-concentration pastes. The strong shear and kneading forces generated by the dual motion enable thorough blending of thick materials.
Versatile Paddle Options: Various types of mixing paddles (e.g., anchor paddles, dispersing discs, sigma blades) can be configured based on material properties and mixing requirements. This versatility allows it to adapt to different processes like mixing, dispersing, kneading, and degassing.
Optional Vacuum/Pressure Function: Many models are equipped with a vacuum system to remove air bubbles from the mixture, improving product density and quality. Some can also operate under positive pressure to handle volatile or special materials.
Easy Cleaning and Maintenance: The mixing vessel can often be tilted or lifted for convenient discharging of materials. Additionally, the design of detachable paddles and a smooth inner wall of the vessel facilitates thorough cleaning, meeting the hygiene standards of industries such as food, pharmaceuticals, and cosmetics.
Stable and Reliable Operation: The equipment adopts a rigid transmission structure and high-quality components, ensuring stable operation even under heavy-load mixing conditions. It also features multiple safety protections (e.g., overload protection, emergency stop) to guarantee operational safety.
Customizable Configurations: The capacity (from lab-scale small volumes to industrial large volumes), material of construction (stainless steel 304, 316L, etc.), and auxiliary systems (heating/cooling jackets, material feeding devices) can be customized according to specific production needs.
Application Areas
Double planetary mixers are widely used in many fields, as follows:
Daily chemical products: Used in the production of emulsions, creams, shampoos, shower gels, and other products that require fine texture and stable performance.
Biomedicine: Applied in the production of medical emulsions, ointments, oral liquids, and other preparations, meeting strict aseptic and fineness standards.
Food industry: Suitable for the production of emulsified foods such as yogurt, ice cream, cheese, and other products that require uniform mixing and stable quality.
Paint and ink: Used in the production of emulsified paints and inks, ensuring fine dispersion of components and stable product performance.
Nanomaterials: Applied in the preparation of nanomaterials, realizing efficient mixing and dispersion of nanoscale materials.
Petrochemical industry: Used in the production of emulsified petroleum products, improving product stability and usability.
Printing and dyeing auxiliaries: Suitable for the production of emulsified paper treatment agents and other printing and dyeing auxiliary products.
Pesticides and fertilizers: Used in the production of emulsified pesticides and fertilizers, enhancing the uniformity and effectiveness of products.
Plastic and rubber: Applied in the production of emulsified plastic and rubber materials, ensuring uniform distribution of additives.
Electric power and electronics industry: Used in the production of emulsified insulation materials and electronic components, meeting the industry's high-performance requirements.
Other fine chemical engineering fields: Such as the production of ceramic materials, glass processing auxiliaries, metal processing fluids, etc., providing reliable mixing solutions.
In short, double planetary mixers have a wide range of applications, mainly used to produce emulsified products and high-consistency materials. They play a key role in improving product stability, fineness, and overall performance in various industries.Gangben Mixer Manufacturer specializes in the research, development, production, and sales of mixing machines and filling machines. Its main products include vacuum emulsifying mixers, high-shear emulsifying mixers, vacuum homogenizing emulsifiers, filling and sealing machines, and liquid filling production lines. Equipped with modern production workshops and environments, we adopt advanced equipment manufacturing technologies and strict process quality management and control measures to ensure that all products are free from defects before leaving the factory.
Gangben Mixer Factory has obtained multiple patents for the research and development of emulsifying machines and planetary mixers, as well as ISO quality management system certification and international CE certification. Our products meet quality standards with a reliable quality guarantee. We are committed to manufacturing high-quality mixing machinery to enhance your production efficiency and reduce costs for your company.
