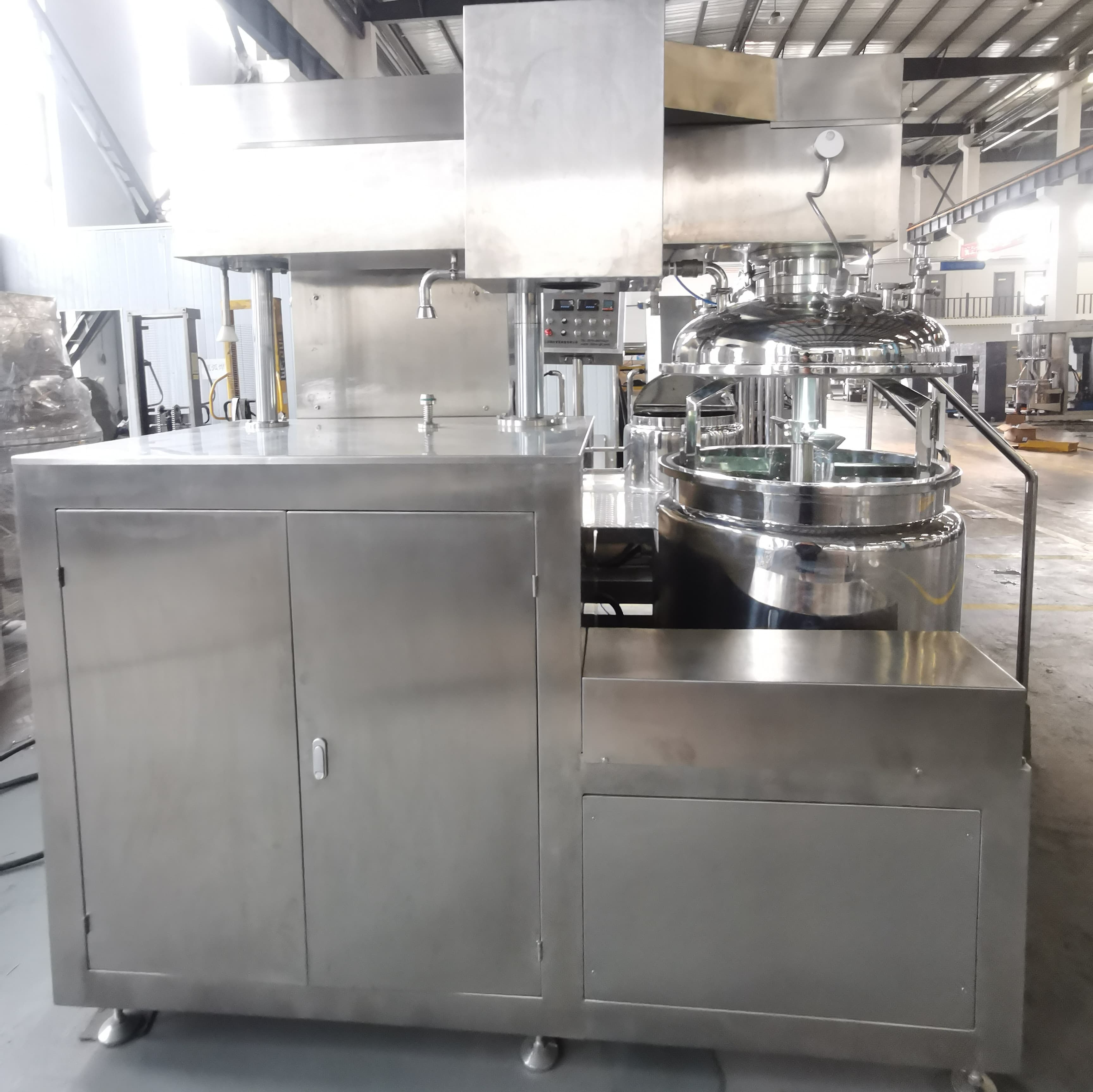

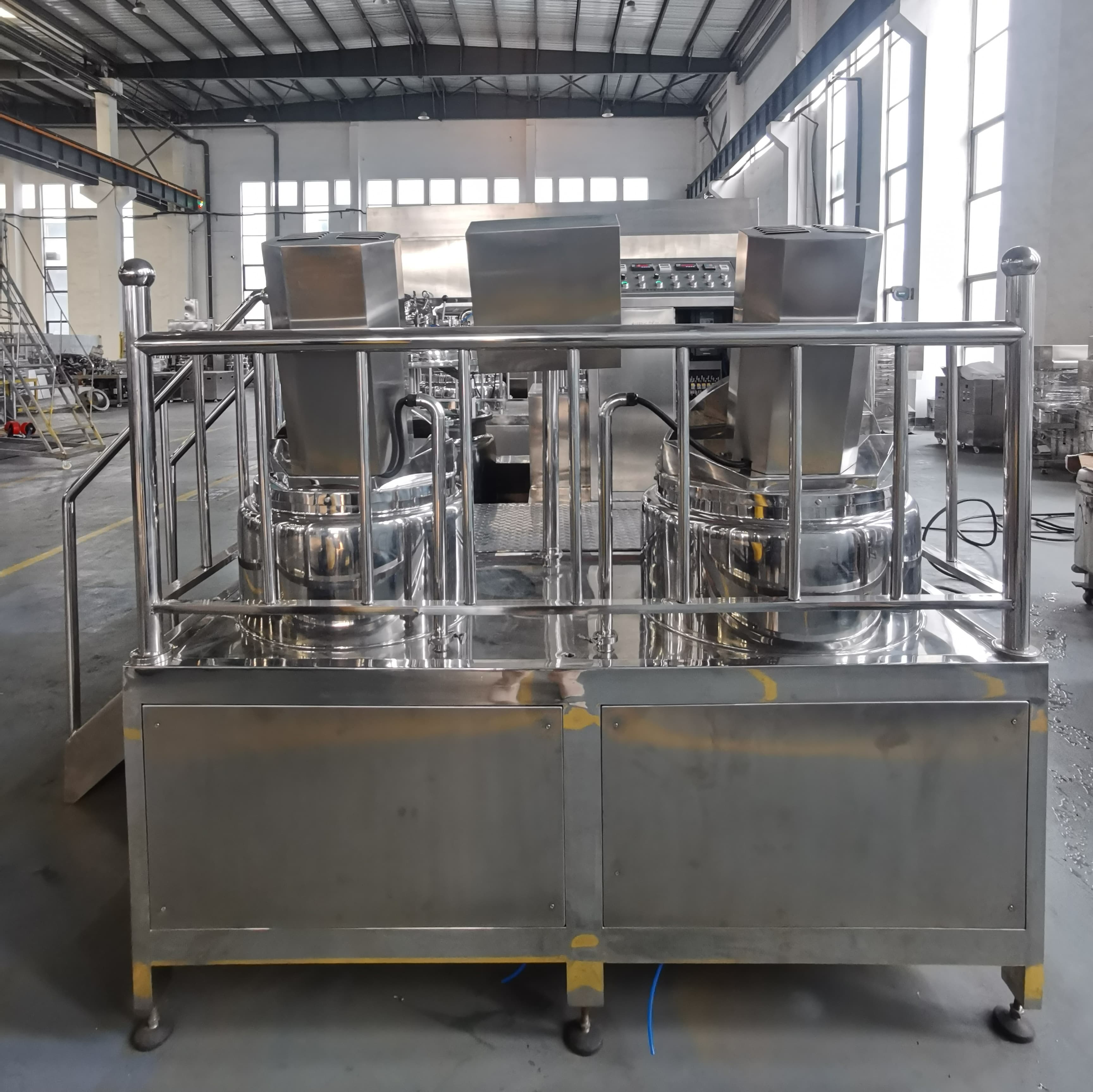

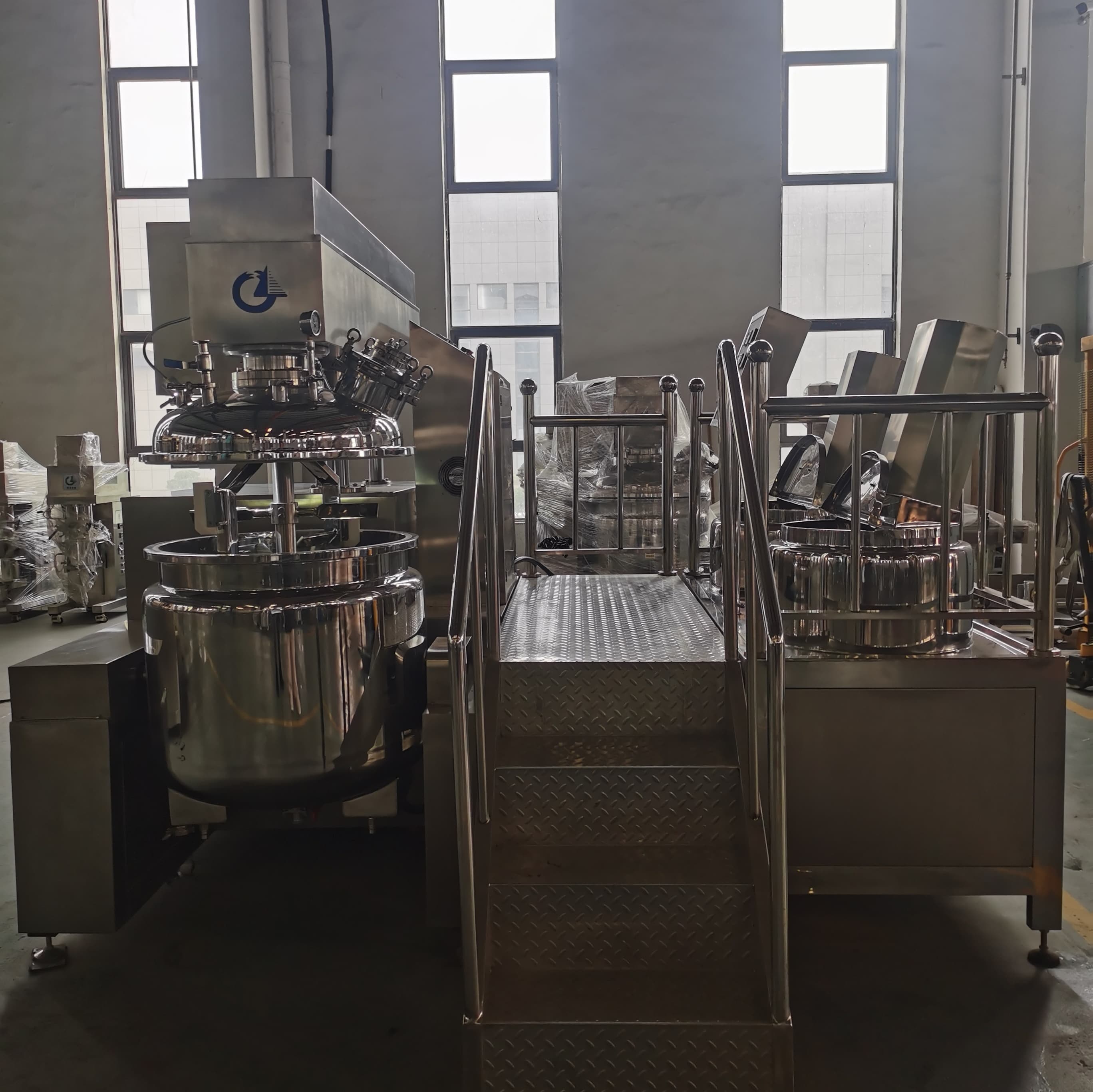

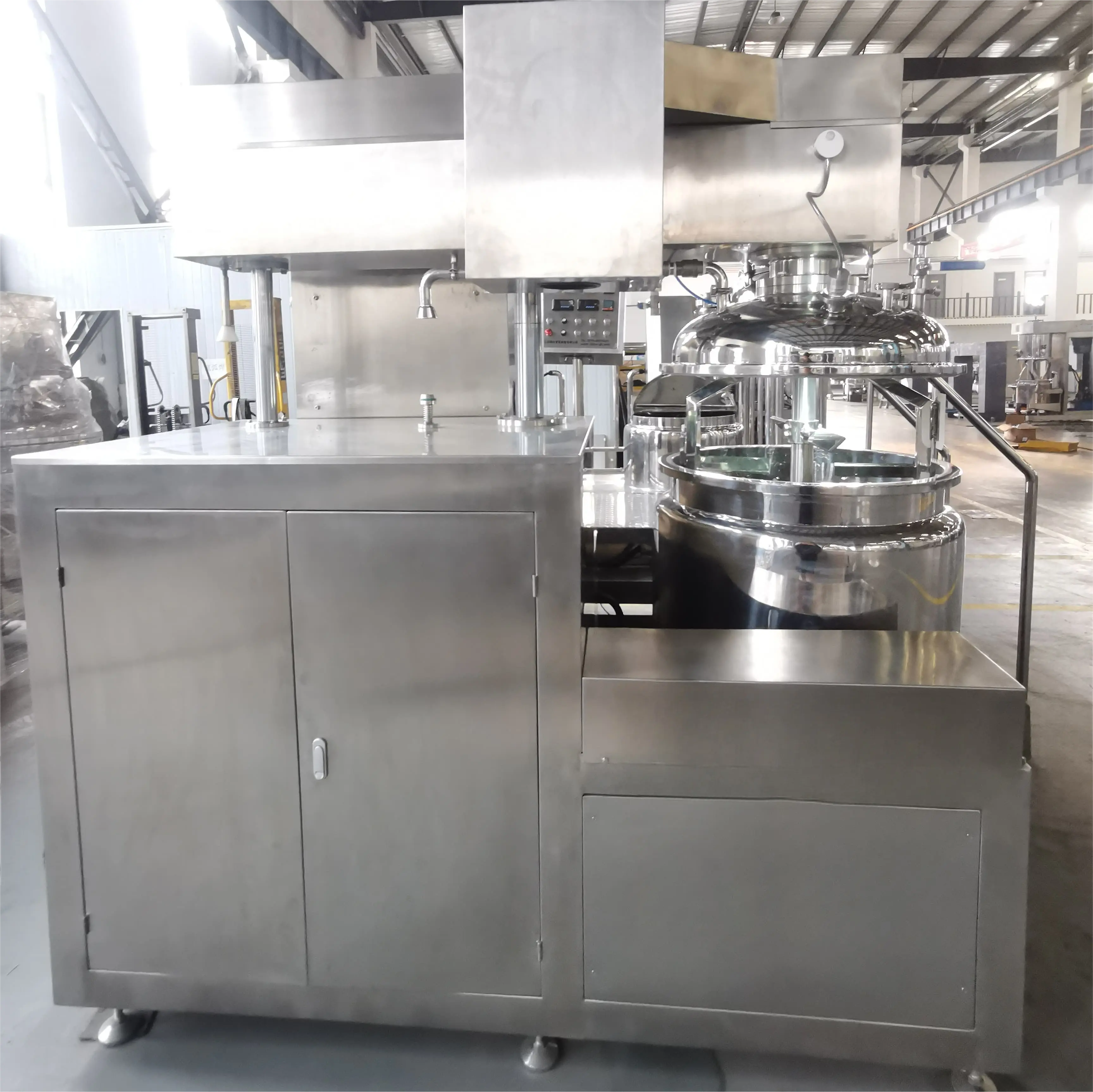

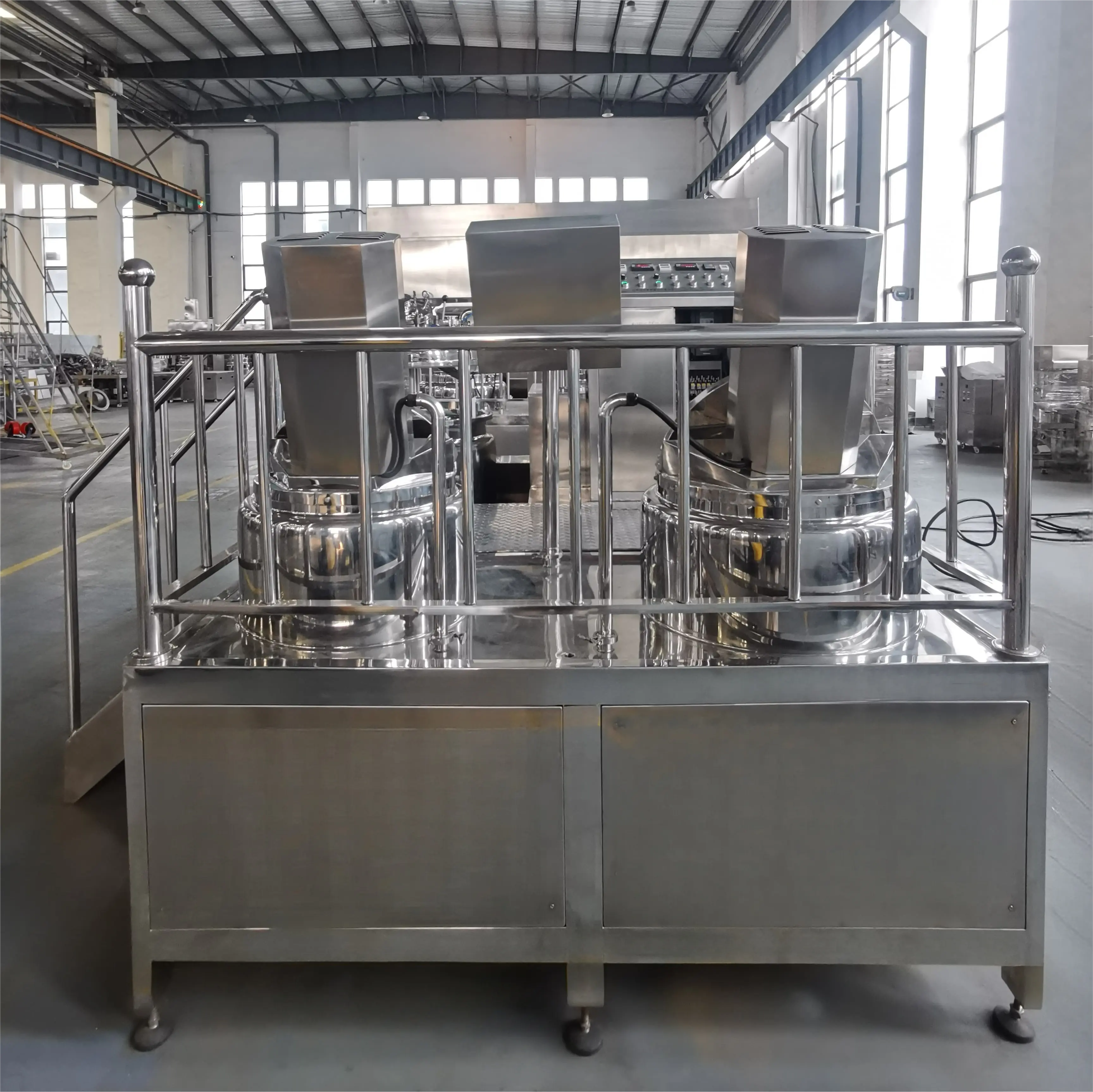

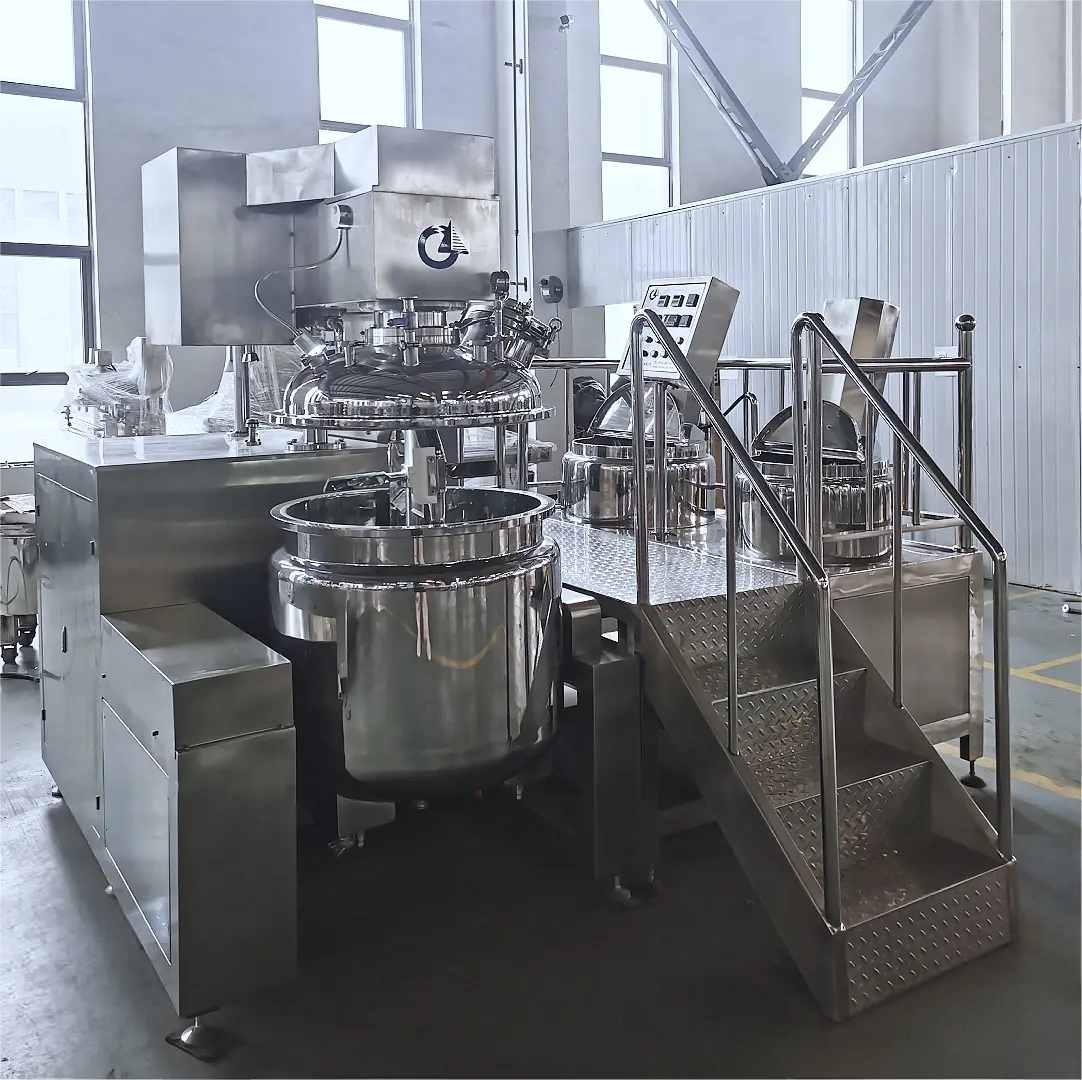

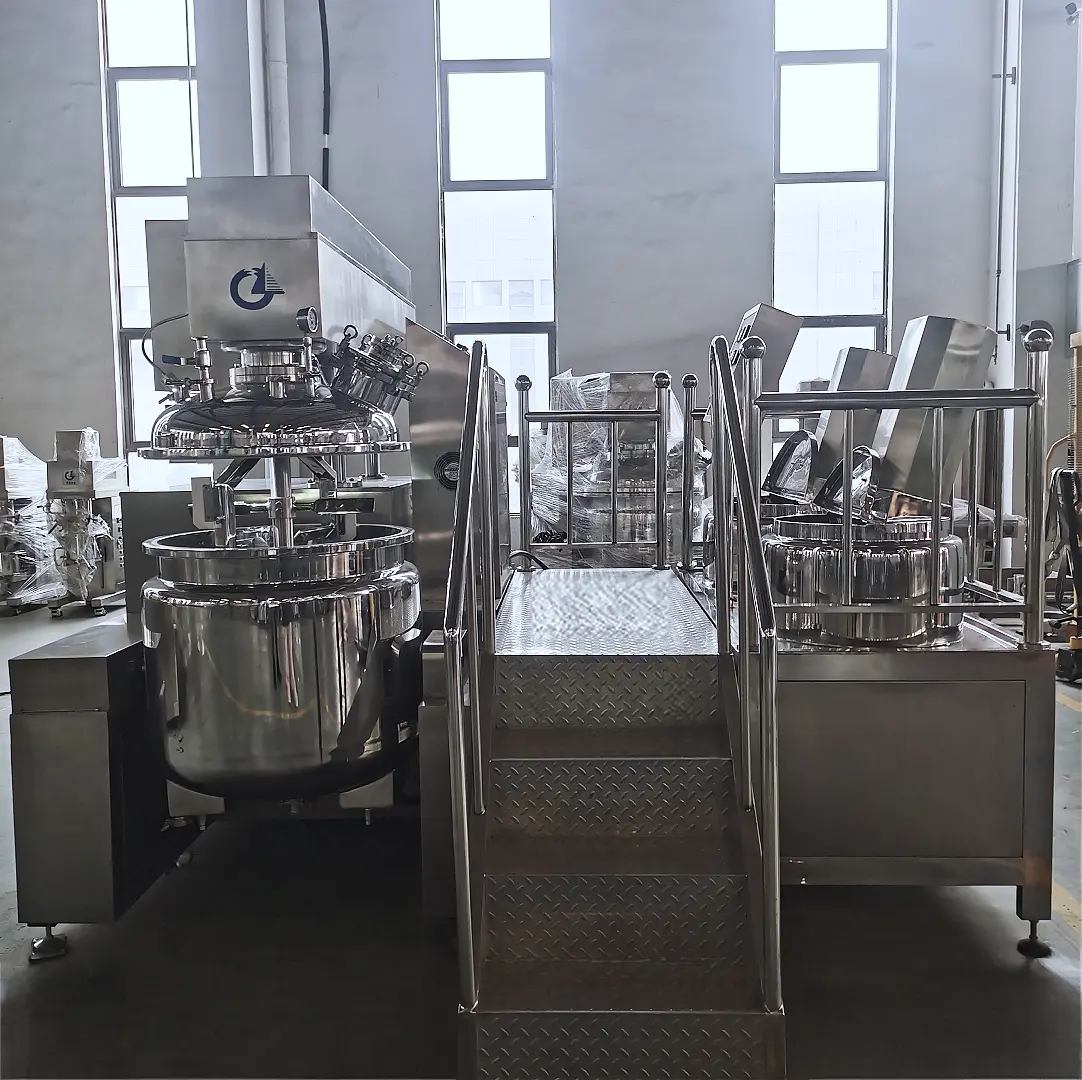

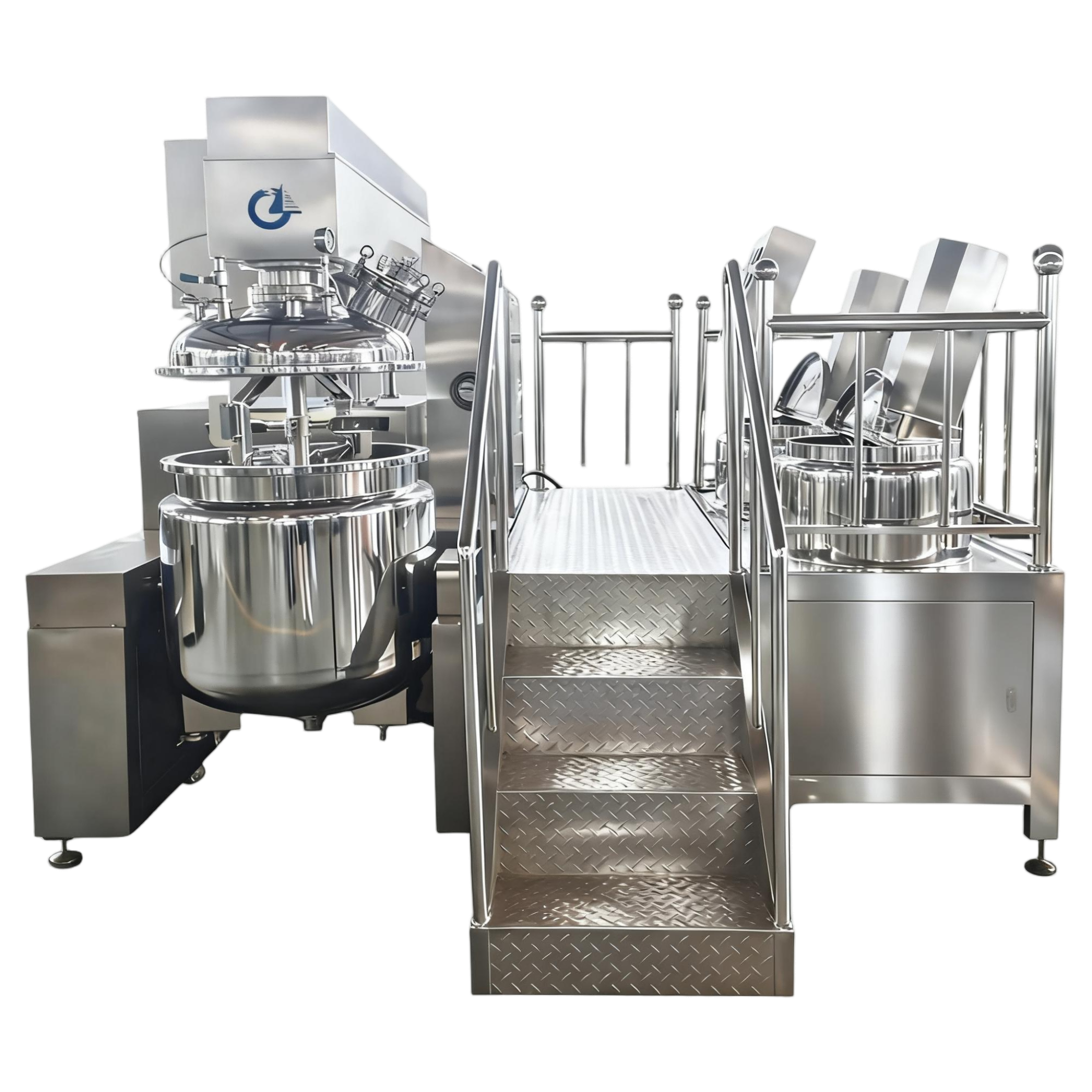

200L Vacuum Homogenizing Emulsifier Unit

The 200L Emulsifying Unit is a high-capacity industrial equipment engineered for large-batch emulsification, homogenization, and mixing. Powered by a high-torque rotor-stator system, it ensures efficient, uniform emulsion formation. Constructed with 316L stainless steel, it complies with FDA, GMP, and CE standards. Equipped with digital control, temperature regulation, and safety interlocks, it’s ideal for mass production in cosmetics, pharmaceuticals, food, and fine chemical industries.

Always on time
Acceptable price
Excellent quality

Follow Us:

Contact Us Inquiry Now

Description
Feature&Application
Factory Strength

The 200L Emulsifying Unit is a heavy-duty, scalable solution designed to meet the demands of medium-to-large-scale industrial production, making it a vital asset for manufacturers transitioning to high-volume output. It excels in producing consistent, stable emulsions—essential for commercial-grade products ranging from cosmetic serums and pharmaceutical ointments to industrial adhesives and food emulsions.
At its core, the unit features a high-performance rotor-stator emulsifying head, driven by a robust motor that delivers exceptional torque and adjustable speeds up to 2860 RPM. This system generates intense shear force and thorough mixing, effectively breaking down particles, dispersing phases, and preventing separation, ensuring uniform particle size and long-term product stability even for high-viscosity materials.

Crafted from food-grade 316L stainless steel, the 200L tank, emulsifying head, and all product-contact components offer superior corrosion resistance and a smooth surface that minimizes residue buildup. This design not only simplifies cleaning and sanitization but also meets strict global hygiene and safety standards (FDA, GMP, CE), making it suitable for sensitive applications in pharmaceuticals and food processing.
The user-friendly digital control panel enables precise adjustment of operating parameters and real-time monitoring of temperature and speed, ensuring repeatable processes and consistent quality across batches. Safety is prioritized with emergency stop functions, cover interlocks, and overload protection. Its rugged frame and optional heating/cooling jackets enhance operational flexibility, while the modular design facilitates maintenance and integration with production lines.
Widely adopted by cosmetic brands for bulk skincare production, pharmaceutical firms for emulsified drug manufacturing, and food processors for large-batch sauces or dairy products, the 200L Emulsifying Unit combines reliability, efficiency, and regulatory compliance to support scalable, cost-effective industrial operations.
Gangben Mixer Factory produces a variety of vacuum homogenizing emulsifiers. Its homogenizing system is divided into upper homogenization, lower homogenization, and internal-external circulation homogenization; the mixing system adopts positive and negative bidirectional wall-mounted mixing paddles; the lifting system is divided into electric lifting and hydraulic lifting. The factory can customize high-quality emulsifying machine products of various specifications according to customer requirements. The triple mixing adopts imported inverter for speed regulation, which can meet the production needs of different processes.
It adopts imported mechanical seals with excellent performance and German homogenizing structure technology, with the maximum emulsification speed reaching 3400 RPM and the minimum shear fineness reaching 0.2~5μm.
Vacuum defoaming enables materials to meet aseptic requirements, and vacuum suction is adopted—especially for powder materials, as vacuum inhalation can avoid dust flying.
The main pot cover can be equipped with an optional lifting device, which enhances the cleaning effect, and the pot body can be tilted for discharging.
The pot body is welded with three layers of imported stainless steel plates, and the tank body and pipelines are polished or matte-finished, fully complying with GMP requirements.
The tank can heat and cool materials, with the main heating methods being steam heating and electric heating.
To ensure more stable control of the entire machine, the electrical components are imported and fully meet international technical standards.

Application Area

Vacuum emulsifying mixers are used in many application areas, as follows:
Daily chemical products: Used in the production of emulsions, creams, shampoos, shower gels, etc.
Biomedicine: Used in the production of medical emulsions, ointments, oral liquids, etc.
Food industry: Used in the production of emulsified foods, such as yogurt, ice cream, cheese, etc.
Paint and ink: Used in the production of emulsified paints and inks.
Nanomaterials: Used in the preparation of nanomaterials.
Petrochemical industry: Used in the production of emulsified petroleum products.
Printing and dyeing auxiliaries: Used in the production of emulsified paper treatment agents.
Pesticides and fertilizers: Used in the production of emulsified pesticides and fertilizers.
Plastic and rubber: Used in the production of emulsified plastic and rubber materials.
Electric power and electronics industry: Used in the production of emulsified insulation materials and electronic components.
Other fine chemical engineering fields: Such as ceramics, glass, metal processing, etc.

In short, vacuum emulsifying machines have a wide range of applications and are mainly used to produce emulsified products, helping to improve product stability and performance in various industries.
Gangben Mixer Manufacturer specializes in the research, development, production, and sales of mixing machines and filling machines. Its main products include vacuum emulsifying mixers, high-shear emulsifying mixers, vacuum homogenizing emulsifiers, filling and sealing machines, and liquid filling production lines. Equipped with modern production workshops and environments, we adopt advanced equipment manufacturing technologies and strict process quality management and control measures to ensure that all products are free from defects before leaving the factory.

Gangben Mixer Factory has obtained multiple patents for the research and development of emulsifying machines and planetary mixers, as well as ISO quality management system certification and international CE certification. Our products meet quality standards with a reliable quality guarantee. We are committed to manufacturing high-quality mixing machinery to enhance your production efficiency and reduce costs for your company.
